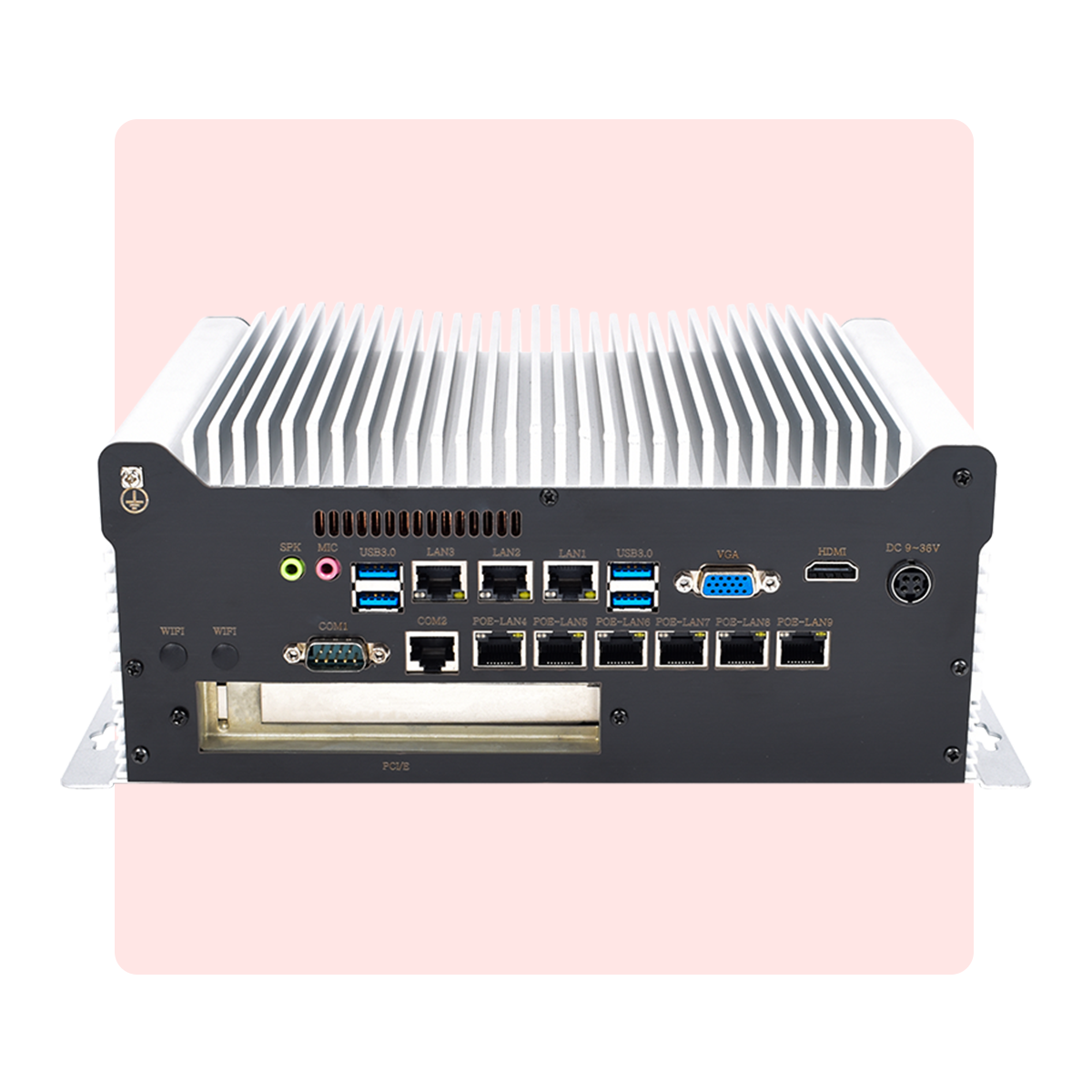

Industrial Box PC IBPC-1702H-9L2C4P-1P 9 LAN 2 COM 4 PoE

BASCO Industrial PC

Industrial Box PC IBPC-1702H-9L2C4P-1P 9 LAN 2 COM 4 PoE

(0)

From $1,005.00 USD

the table display is not optimized for mobile devices. Please contact online customer service to obtain the data sheet.

Industrial Box PC Specification 9 LAN 2 COM 4 PoE

Model	IBPC-1702H-9L2C4P-1P
Supported OS	Win 7, Win 8, Win 10, Win 11, Linux (Ubuntu, Debian, Kali, CentOS, etc.); WES 7; Win 10 IoT
Chipset	Intel® Z370 Chipset
CPU	Processor Socket	Intel® Desktop Processors Socket LGA1151
	Series	6th Gen. Intel® Core™ Processor	Intel® Celeron® G4900 Processor	7th-9th Gen. Intel® Core™ Processor
	TDP	Up to 65W	54W	Up to 65W
	Graphic	Intel® HD Graphics 530	Intel® UHD Graphics 610	7th Gen: Intel® HD Graphics 630 8th/ 9th Gen: Intel® UHD Graphics 630
RAM	Type&Qty	2* SO-DIMM Socket	2* SO-DIMM Socket	2* SO-DIMM Socket
	Frequency	DDR4-1866/2133 MHz	DDR4-2400 MHz	DDR4-2400/2666 MHz
	Capacity	Up to 32GB	Up to 32GB	Up to 32GB
Storage Device	SATA	1* 2.5″ SATA3.0 Bay on board (6Gb/s); 3* SATA3.0 connectors (6Gb/s), Support RAID (0/1/5)
	MSATA	1* mSATA3.0 slot on board (6Gb/s)
	M.2	1* M.2 (NGFF) 2280 M-key slot, support PCIex4 Gen.3 NVMe/ SATA3.0 SSD
I/O Interface	COM	1* RS232/485 with RJ45 connector, 1* RS232/485 with DB9 connector, switchable by jumper
	Ethernet	4* Intel® i211 GbE PoE LAN, RJ45 connector; 5* Intel® i211 GbE LAN, RJ45 connector (One of GbE LAN is shared with Mini-PCIe's PCIe signal)
	USB	8* USB 3.0; 3* USB2.0; 1* Internal USB2.0
	Video	1* HDMI, Support 4096×2304@24Hz, (Optional 1* DP, Support 4096 x 2304@60Hz); 1* VGA, Support 1920×1200@60Hz
	Audio	1* MIC, 1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662
	SIM	1* External SIM card slot connected to Mini-PCIe
	Power Supply	9V-36V DC; 1* 4-Pin DC Power Jack (Circular DIN Connectors, Full-Shield)
	Other	1* 8-bit GPIO (4-Inputs/4-Outputs, 0-5V Input Range) and 1* Remote Switch on Terminal Block (12-Pin, 3.81mm). 1* PS/2 for keyboard/ mouse; 1* Auto-On Switch; 1* TPM header (2*8-pin)
Extended Capabilities	Additional Internal Interface	1* PCIe3.0 x16 Slot; 1* Full Size Mini-PCIe with SIM card slot; (PCIe+USB2.0, PCIe signal is shared with a LAN port); 1* M.2 2230 E-key Slot (PCIe+USB2.0, support WiFi+BT)
Environment	Operating Temperature	-10 ~ 55 °C w/ 0.7m/s Airflow
	Storage Temperature	-40 ~ 85 °C (-40~185 °F)
	Relative Humidity	40 °C @ 95%, Non-Condensing
Physical Characteristics	Dimensions	290.35* 109.28* 186 mm (W* H* D)
	Net Weight	4.25 KG
Regulation	EMC	CE/FCC Class B, CCC
	Safety	CE-LVD, RoHS, CCC

Optional Processor

CPU	Code Name	Total Cores	Total Threads	Max Turbo Frequency	Base Frequency	Cache	TDP	Memory Types	Integrated Graphics
Intel® Core™ I3-6100	Skylake	2	4	–	3.70 GHz	3 MB Intel® Smart Cache	51 W	DDR4	Intel® HD Graphics 530
Intel® Core™ I5-6500	Skylake	4	4	3.60 GHz	3.20 GHz	6 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 530
Intel® Core™ I7-6700	Skylake	4	8	4.00 GHz	3.40 GHz	8 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 530
Intel® Celeron® G4900	Coffee Lake	2	2	–	3.10 GHz	2 MB Intel® Smart Cache	54 W	DDR4	Intel® UHD Graphics 610
Intel® Core™ I3-7100	Kaby Lake	2	4	–	3.90 GHz	3 MB Intel® Smart Cache	51 W	DDR4	Intel® HD Graphics 630
Intel® Core™ I5-7400	Kaby Lake	2	4	3.50 GHz	3.00 GHz	6 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 630
Intel® Core™ I7-7700	Kaby Lake	4	8	4.20 GHz	3.60 GHz	8 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 630
Intel® Core™ I3-8100	Coffee Lake	4	4	–	3.60 GHz	6 MB Intel® Smart Cache	65 W	DDR4	Intel® UHD Graphics 630
Intel® Core™ I5-8500	Coffee Lake	6	6	4.10 GHz	3.00 GHz	9 MB Intel® Smart Cache	65 W	DDR4	Intel® UHD Graphics 630
Intel® Core™ I7-8700	Coffee Lake	6	12	4.60 GHz	3.20 GHz	12 MB Intel® Smart Cache	65 W	DDR4	Intel® UHD Graphics 630
Intel® Core™ I3-9300	Coffee Lake	4	4	4.30 GHz	3.70 GHz	8 MB Intel® Smart Cache	62 W	DDR4	Intel® UHD Graphics 630
Intel® Core™ I5-9400	Coffee Lake	6	6	4.10 GHz	2.90 GHz	9 MB Intel® Smart Cache	65 W	DDR4	Intel® UHD Graphics 630
Intel® Core™ I7-9700	Coffee Lake	8	8	4.70 GHz	3.00 GHz	12 MB Intel® Smart Cache	65 W	DDR4	Intel® UHD Graphics 630
Intel® Core™ I9-9900	Coffee Lake	8	16	5.00 GHz	3.10 GHz	16 MB Intel® Smart Cache	65 W	DDR4	Intel® UHD Graphics 630

Optional Accessories

Optional Items	Max Qty	Description
Isolated 8-bit GPIO, 9-24V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
Isolated 8-bit GPIO with current loading, 9-26V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
Isolated 15-bit GPIO, 0-5V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
Isolated 15-bit GPIO with 7-in & 8-out, 12-24V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
4G Module	1	Connected by Mini-PCIe interface
WiFi Module without AP mode	1	Connected by Mini-PCIe interface, M.2 interface or internal USB interface
WiFi Module with AP mode	1	Connected by Mini-PCIe interface
Dual channel CAN-Bus Module	2	Connected by Mini-PCIe or M.2 interface
Dual/Quad channel CAN-Bus Module	1	Connected by PCIe Interface
Quad GbE PoE LAN Module	1	Connected by PCIe Interface
Ignition Switch Module	1	Phoenix Terminal connector, connected by internal power switch and 4-pin ATX power connector

Drawings and Dimensions

In stock

Receives in 30 days.

Industrial Box PC IBPC-1702H-9L2C6P-0P 9 LAN 2 COM 6 PoE

BASCO Industrial PC

Industrial Box PC IBPC-1702H-9L2C6P-0P 9 LAN 2 COM 6 PoE

(0)

From $1,025.00 USD

the table display is not optimized for mobile devices. Please contact online customer service to obtain the data sheet.

Industrial Box PC Specification 9 LAN 2 COM 6 PoE

Model	IBPC-1702H-9L2C6P-0P
Supported OS	Win 7, Win 8, Win 10, Win 11, Linux (Ubuntu, Debian, Kali, CentOS, etc.); WES 7; Win 10 IoT
Chipset	Intel® Z370 Chipset
CPU	Processor Socket	Intel® Desktop Processors Socket LGA1151
	Series	6th Gen. Intel® Core™ Processor	Intel® Celeron® G4900 Processor	7th-9th Gen. Intel® Core™ Processor
	TDP	Up to 65W	54W	Up to 65W
	Graphic	Intel® HD Graphics 530	Intel® UHD Graphics 610	7th Gen: Intel® HD Graphics 630 8th/ 9th Gen: Intel® UHD Graphics 630
RAM	Type&Qty	2* SO-DIMM Socket	2* SO-DIMM Socket	2* SO-DIMM Socket
	Frequency	DDR4-1866/2133 MHz	DDR4-2400 MHz	DDR4-2400/2666 MHz
	Capacity	Up to 32GB	Up to 32GB	Up to 32GB
Storage Device	SATA	1* 2.5″ SATA3.0 Bay on board (6Gb/s); 3* SATA3.0 connectors (6Gb/s), Support RAID (0/1/5)
	MSATA	1* mSATA3.0 slot on board (6Gb/s)
	M.2	1* M.2 (NGFF) 2280 M-key slot, support PCIex4 Gen.3 NVMe/ SATA3.0 SSD
I/O Interface	COM	1* RS232/485 with RJ45 connector, 1* RS232/485 with DB9 connector, switchable by jumper
	Ethernet	(Option A&B) 3* Intel® i211 GbE LAN, RJ45 connector; (Option A) 6* Intel® i226 GbE LAN, RJ45 connector (One of Poe GbE LAN is shared with Mini-PCIe's PCIe signal) (Option B) 6* Intel® i226 GbE LAN, M12 connector (One of Poe GbE LAN is shared with Mini-PCIe's PCIe signal)
	USB	8* USB 3.0; 3* USB2.0; 1* Internal USB2.0
	Video	1* HDMI, Support 4096×2304@24Hz, (Optional 1* DP, Support 4096 x 2304@60Hz); 1* VGA, Support 1920×1200@60Hz
	Audio	1* MIC, 1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662
	SIM	1* External SIM card slot connected to Mini-PCIe
	Power Supply	9V-36V DC; 1* 4-Pin DC Power Jack (Circular DIN Connectors, Full-Shield)
	Other	1* 8-bit GPIO (4-Inputs/4-Outputs, 0-5V Input Range) and 1* Remote Switch on Terminal Block (12-Pin, 3.81mm). 1* PS/2 for keyboard/ mouse; 1* Auto-On Switch; 1* TPM header (2*8-pin)
Extended Capabilities	Additional Internal Interface	1* Full Size Mini-PCIe with SIM card slot; (PCIe+USB2.0, PCIe signal is shared with a LAN port); 1* M.2 2230 E-key Slot (PCIe+USB2.0, support WiFi+BT)
Environment	Operating Temperature	-10 ~ 55 °C w/ 0.7m/s Airflow
	Storage Temperature	-40 ~ 85 °C (-40~185 °F)
	Relative Humidity	40 °C @ 95%, Non-Condensing
Physical Characteristics	Dimensions	290.35* 87.58* 186 mm (W* H* D)
	Net Weight	3.9 KG
Regulation	EMC	CE/FCC Class B, CCC
	Safety	CE-LVD, RoHS, CCC

Optional Processor

CPU	Code Name	Total Cores	Total Threads	Max Turbo Frequency	Base Frequency	Cache	TDP	Memory Types	Integrated Graphics
Intel® Core™ I3-6100	Skylake	2	4	–	3.70 GHz	3 MB Intel® Smart Cache	51 W	DDR4	Intel® HD Graphics 530
Intel® Core™ I5-6500	Skylake	4	4	3.60 GHz	3.20 GHz	6 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 530
Intel® Core™ I7-6700	Skylake	4	8	4.00 GHz	3.40 GHz	8 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 530
Intel® Celeron® G4900	Coffee Lake	2	2	–	3.10 GHz	2 MB Intel® Smart Cache	54 W	DDR4	Intel® UHD Graphics 610
Intel® Core™ I3-7100	Kaby Lake	2	4	–	3.90 GHz	3 MB Intel® Smart Cache	51 W	DDR4	Intel® HD Graphics 630
Intel® Core™ I5-7400	Kaby Lake	2	4	3.50 GHz	3.00 GHz	6 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 630
Intel® Core™ I7-7700	Kaby Lake	4	8	4.20 GHz	3.60 GHz	8 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 630
Intel® Core™ I3-8100	Coffee Lake	4	4	–	3.60 GHz	6 MB Intel® Smart Cache	65 W	DDR4	Intel® UHD Graphics 630
Intel® Core™ I5-8500	Coffee Lake	6	6	4.10 GHz	3.00 GHz	9 MB Intel® Smart Cache	65 W	DDR4	Intel® UHD Graphics 630
Intel® Core™ I7-8700	Coffee Lake	6	12	4.60 GHz	3.20 GHz	12 MB Intel® Smart Cache	65 W	DDR4	Intel® UHD Graphics 630
Intel® Core™ I3-9300	Coffee Lake	4	4	4.30 GHz	3.70 GHz	8 MB Intel® Smart Cache	62 W	DDR4	Intel® UHD Graphics 630
Intel® Core™ I5-9400	Coffee Lake	6	6	4.10 GHz	2.90 GHz	9 MB Intel® Smart Cache	65 W	DDR4	Intel® UHD Graphics 630
Intel® Core™ I7-9700	Coffee Lake	8	8	4.70 GHz	3.00 GHz	12 MB Intel® Smart Cache	65 W	DDR4	Intel® UHD Graphics 630
Intel® Core™ I9-9900	Coffee Lake	8	16	5.00 GHz	3.10 GHz	16 MB Intel® Smart Cache	65 W	DDR4	Intel® UHD Graphics 630

Optional Accessories

Optional Items	Max Qty	Description
Isolated 8-bit GPIO, 9-24V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
Isolated 8-bit GPIO with current loading, 9-26V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
Isolated 15-bit GPIO, 0-5V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
Isolated 15-bit GPIO with 7-in & 8-out, 12-24V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
4G Module	1	Connected by Mini-PCIe interface
WiFi Module without AP mode	1	Connected by Mini-PCIe interface, M.2 interface or internal USB interface
WiFi Module with AP mode	1	Connected by Mini-PCIe interface
Dual channel CAN-Bus Module	2	Connected by Mini-PCIe or M.2 interface
Ignition Switch Module	1	Phoenix Terminal connector, connected by internal power switch and 4-pin ATX power connector

Drawings and Dimensions

In stock

Receives in 30 days.

Industrial Box PC IBPC-1702H-9L2C6P-1P 9 LAN 2 COM 6 PoE

BASCO Industrial PC

Industrial Box PC IBPC-1702H-9L2C6P-1P 9 LAN 2 COM 6 PoE

(0)

From $1,025.00 USD

the table display is not optimized for mobile devices. Please contact online customer service to obtain the data sheet.

Industrial Box PC Specification 9 LAN 2 COM 6 PoE

Model	IBPC-1702H-9L2C6P-1P
Supported OS	Win 7, Win 8, Win 10, Win 11, Linux (Ubuntu, Debian, Kali, CentOS, etc.); WES 7; Win 10 IoT
Chipset	Intel® Z370 Chipset
CPU	Processor Socket	Intel® Desktop Processors Socket LGA1151
	Series	6th Gen. Intel® Core™ Processor	Intel® Celeron® G4900 Processor	7th-9th Gen. Intel® Core™ Processor
	TDP	Up to 65W	54W	Up to 65W
	Graphic	Intel® HD Graphics 530	Intel® UHD Graphics 610	7th Gen: Intel® HD Graphics 630 8th/ 9th Gen: Intel® UHD Graphics 630
RAM	Type&Qty	2* SO-DIMM Socket	2* SO-DIMM Socket	2* SO-DIMM Socket
	Frequency	DDR4-1866/2133 MHz	DDR4-2400 MHz	DDR4-2400/2666 MHz
	Capacity	Up to 32GB	Up to 32GB	Up to 32GB
Storage Device	SATA	1* 2.5″ SATA3.0 Bay on board (6Gb/s); 3* SATA3.0 connectors (6Gb/s), Support RAID (0/1/5)
	MSATA	1* mSATA3.0 slot on board (6Gb/s)
	M.2	1* M.2 (NGFF) 2280 M-key slot, support PCIex4 Gen.3 NVMe/ SATA3.0 SSD
I/O Interface	COM	1* RS232/485 with RJ45 connector, 1* RS232/485 with DB9 connector, switchable by jumper
	Ethernet	(Option A&B) 3* Intel® i211 GbE LAN, RJ45 connector; (Option A) 6* Intel® i226 GbE LAN, RJ45 connector (One of Poe GbE LAN is shared with Mini-PCIe's PCIe signal) (Option B) 6* Intel® i226 GbE LAN, M12 connector (One of Poe GbE LAN is shared with Mini-PCIe's PCIe signal)
	USB	8* USB 3.0; 3* USB2.0; 1* Internal USB2.0
	Video	1* HDMI, Support 4096×2304@24Hz, (Optional 1* DP, Support 4096 x 2304@60Hz); 1* VGA, Support 1920×1200@60Hz
	Audio	1* MIC, 1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662
	SIM	1* External SIM card slot connected to Mini-PCIe
	Power Supply	9V-36V DC; 1* 4-Pin DC Power Jack (Circular DIN Connectors, Full-Shield)
	Other	1* 8-bit GPIO (4-Inputs/4-Outputs, 0-5V Input Range) and 1* Remote Switch on Terminal Block (12-Pin, 3.81mm). 1* PS/2 for keyboard/ mouse; 1* Auto-On Switch; 1* TPM header (2*8-pin)
Extended Capabilities	Additional Internal Interface	1* PCIe3.0 x16 Slot; 1* Full Size Mini-PCIe with SIM card slot; (PCIe+USB2.0, PCIe signal is shared with a LAN port); 1* M.2 2230 E-key Slot (PCIe+USB2.0, support WiFi+BT)
Environment	Operating Temperature	-10 ~ 55 °C w/ 0.7m/s Airflow
	Storage Temperature	-40 ~ 85 °C (-40~185 °F)
	Relative Humidity	40 °C @ 95%, Non-Condensing
Physical Characteristics	Dimensions	290.35* 109.28* 186 mm (W* H* D)
	Net Weight	4.25 KG
Regulation	EMC	CE/FCC Class B, CCC
	Safety	CE-LVD, RoHS, CCC

Optional Processor

CPU	Code Name	Total Cores	Total Threads	Max Turbo Frequency	Base Frequency	Cache	TDP	Memory Types	Integrated Graphics
Intel® Core™ I3-6100	Skylake	2	4	–	3.70 GHz	3 MB Intel® Smart Cache	51 W	DDR4	Intel® HD Graphics 530
Intel® Core™ I5-6500	Skylake	4	4	3.60 GHz	3.20 GHz	6 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 530
Intel® Core™ I7-6700	Skylake	4	8	4.00 GHz	3.40 GHz	8 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 530
Intel® Celeron® G4900	Coffee Lake	2	2	–	3.10 GHz	2 MB Intel® Smart Cache	54 W	DDR4	Intel® UHD Graphics 610
Intel® Core™ I3-7100	Kaby Lake	2	4	–	3.90 GHz	3 MB Intel® Smart Cache	51 W	DDR4	Intel® HD Graphics 630
Intel® Core™ I5-7400	Kaby Lake	2	4	3.50 GHz	3.00 GHz	6 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 630
Intel® Core™ I7-7700	Kaby Lake	4	8	4.20 GHz	3.60 GHz	8 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 630
Intel® Core™ I3-8100	Coffee Lake	4	4	–	3.60 GHz	6 MB Intel® Smart Cache	65 W	DDR4	Intel® UHD Graphics 630
Intel® Core™ I5-8500	Coffee Lake	6	6	4.10 GHz	3.00 GHz	9 MB Intel® Smart Cache	65 W	DDR4	Intel® UHD Graphics 630
Intel® Core™ I7-8700	Coffee Lake	6	12	4.60 GHz	3.20 GHz	12 MB Intel® Smart Cache	65 W	DDR4	Intel® UHD Graphics 630
Intel® Core™ I3-9300	Coffee Lake	4	4	4.30 GHz	3.70 GHz	8 MB Intel® Smart Cache	62 W	DDR4	Intel® UHD Graphics 630
Intel® Core™ I5-9400	Coffee Lake	6	6	4.10 GHz	2.90 GHz	9 MB Intel® Smart Cache	65 W	DDR4	Intel® UHD Graphics 630
Intel® Core™ I7-9700	Coffee Lake	8	8	4.70 GHz	3.00 GHz	12 MB Intel® Smart Cache	65 W	DDR4	Intel® UHD Graphics 630
Intel® Core™ I9-9900	Coffee Lake	8	16	5.00 GHz	3.10 GHz	16 MB Intel® Smart Cache	65 W	DDR4	Intel® UHD Graphics 630

Optional Accessories

Optional Items	Max Qty	Description
Isolated 8-bit GPIO, 9-24V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
Isolated 8-bit GPIO with current loading, 9-26V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
Isolated 15-bit GPIO, 0-5V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
Isolated 15-bit GPIO with 7-in & 8-out, 12-24V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
4G Module	1	Connected by Mini-PCIe interface
WiFi Module without AP mode	1	Connected by Mini-PCIe interface, M.2 interface or internal USB interface
WiFi Module with AP mode	1	Connected by Mini-PCIe interface
Dual channel CAN-Bus Module	2	Connected by Mini-PCIe or M.2 interface
Dual/Quad channel CAN-Bus Module	1	Connected by PCIe Interface
Quad GbE PoE LAN Module	1	Connected by PCIe Interface
Ignition Switch Module	1	Phoenix Terminal connector, connected by internal power switch and 4-pin ATX power connector

Drawings and Dimensions

In stock

Receives in 30 days.

Industrial Box PC IBPC-2301H-3L5C-1P 3 LAN 5 COM 12th/13th/14th CPU

BASCO Industrial PC

Industrial Box PC IBPC-2301H-3L5C-1P 3 LAN 5 COM 12th/13th/14th CPU

(0)

From $2,018.00 USD

the table display is not optimized for mobile devices. Please contact online customer service to obtain the data sheet.

High-performance Industrial Box PC Specification

Model	IBPC-2301H-3L5C-1P
Supported OS	Win 10, Win 11, Linux (Ubuntu, Debian, Kali, CentOS, etc.); Win 10 IoT
Chipset	Intel® H770 Chipset, TDP 6W
CPU	Socket	Intel® Desktop Processors Socket LGA1700
	Series	Gen.12/13/14 Intel® Core™ i3 processor (base TDP up to 65W)	Gen.12/13/14 Intel® Core™ i9/ i7/ i5 processor (base TDP up to 35W)
	Graphic	Intel® UHD Graphics 730, 24 Execution Units	Intel® HD Graphics 770, 32 Execution Units
RAM	Type&Qty	2* Dual-CH DDR4 3200 MHz SO-DIMM Socket, Capacity up to 64GB for single slot
Storage Device	SATA	1* 2.5″ SATA3.0 Bay on daughterboard (6Gb/s); 4* SATA3.0 connectors (6Gb/s), Support RAID 0/1/5/10 (SATA3&4 are colay with PCIex2 of NGFF1)
	MSATA	1* mSATA3.0 slot on board (6Gb/s)
	M.2	1* M.2 2280 M-key slot (NGFF3), support PCIex4 Gen.3 NVMe SSD (From CPU); 1* M.2 2280 M-key slot (NGFF1), support PCIex2 Gen.3 NVMe/ SATA3.0 SSD (From PCH, the PCIex2 signale is colay with SATA 3&4)
I/O Interface	COM	4* Isolated DB9 COM Ports with ESD/EFT/Surge protection (COM1-4, support RS232/485, switchable by jumper); 1* RS232 with DB9 connector (COM5); 1* RS232 header (COM6)
	Ethernet	2* Intel® i210AT GbE LAN, RJ45 connector; 1* Intel® i219LM GbE LAN, RJ45 connector
	USB	4* USB3.2 Gen 2×1 (10Gb/s); 4* USB3.0 (5Gb/s); (USB3.0-1 is colay with M.2 B Key slot, USB3.0-2 is colay with Mini-PCIe slot on motherboard); 2* USB2.0, 1* Internal USB2.0 (480Mb/s, on daughterboard)
	Video	1* HDMI, Support 4096×2304 @24Hz +1* DP, Support 40962160 @60Hz; (Optional 2 DP, Support 4096 x 2304@60Hz); Optional with one more HDMI port, expanded by TP-IPC daughter card, supports 3 independent displays
	Audio	1* MIC, 1* SPK; With 7.1+2 channels HD (High Definition) Audio Codec Realtek ALC897
	SIM	2* External SIM card slot, SIM 1 is connected to M.2 B-key slot, SIM2 is connected to Mini-PCIe slot on daughterboard; (Available with one more internal SIM card slot when using a LTE module with SIM card slot)
	Power Supply	9-36 VDC; 1* Terminal Block (4-Pin, 5.08mm)
	Other	1* 8-bit GPIO, Terminal Block (12-Pin, 3.81mm), 4-Inputs/4-Outputs, 0-5V Input Range; 1* Terminal Block (4-Pin, 3.81mm Pitch) with Remote Switch and Power Indicator; 1* PS/2 for keyboard/ mouse; 1* Auto-On Jumper; 1* TPM header (2*6-pin)
Extended Capabilities	Additional Internal Interface	1* PCIe4.0 x16 or 1* PCI; 1* M.2 3042/3052 B-key Slot with SIM card slot1 (USB3.0, USB signal is colay with USB1 on motherboard); 1* Full Size Mini-PCIe Slot (PCIe+USB2.0, on motherboard, without SIM card slot, USB signal iss colay with USB2 on motherboard); 1* Full Size Mini-PCIe Slot with SIM card slot2 (PCIe+USB2.0, on daughterboard); 1* M.2 2230 E-key Slot (PCIe+USB2.0, support CNVi, WiFi+BT)
Environment	Operating Temp.	-10 ~ 55 °C w/ 0.7m/s Airflow
	Storage Temp.	-40 ~ 85 °C (-40~185 °F)
	Relative Humidity	40 °C @ 95%, Non-Condensing
Physical Characteristics	Dimensions	290.35* 109.28* 186 mm (W* H* D)
	Net Weight	4.25 KG
Regulation	EMC	CE/FCC Class B, CCC
	Safety	CE-LVD, RoHS, CCC

Optional Processor

CPU	Code Name	Total Cores	Total Threads	Max Turbo Frequency	Base Frequency	Cache	TDP	Memory Types	Integrated Graphics
Intel® Core™ I3-12100T	Alder Lake	4	8	4.10 GHz	2.20 GHz	12 MB	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-12500T	Alder Lake	6	12	4.40 GHz	2.00 GHz	18 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-12700T	Alder Lake	12	20	4.70 GHz	1.40 GHz	25 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-12900T	Alder Lake	16	24	4.90 GHz	1.40 GHz	30 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-12100	Alder Lake	4	8	4.30 GHz	3.30 GHz	12 MB	65 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-12500	Alder Lake	6	12	4.60 GHz	3.00 GHz	18 MB	65 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-13100T	Raptor Lake	4	8	4.10 GHz	2.20 GHz	12 MB	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-13500T	Raptor Lake	14	20	4.40 GHz	2.00 GHz	24 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-13700T	Raptor Lake	16	24	4.70 GHz	1.40 GHz	30 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-13900T	Raptor Lake	24	32	4.90 GHz	1.40 GHz	36 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-13100	Raptor Lake	4	8	4.30 GHz	3.30 GHz	12 MB	65 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I3-14100T	Raptor Lake	4	8	4.40 GHz	2.70 GHz	12 MB	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-14500T	Raptor Lake	14	20	4.80 GHz	1.70 GHz	24 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-14700T	Raptor Lake	20	28	5.20 GHz	1.30 GHz	33 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-14900T	Raptor Lake	24	32	5.50 GHz	1.10 GHz	36 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-14100	Raptor Lake	4	8	4.70 GHz	3.50 GHz	12 MB	65 W	DDR4	Intel® HD Graphics 730, 24EUs

Optional Accessories

Optional Items	Max Qty	Description
Isolated RS-232	1	DB9 or Phoenix Terminal connector, connected by header
Non-Isolated RS-232	1	DB9 or Phoenix Terminal connector, connected by header
Non-Isolated RS-422	1	DB9 or Phoenix Terminal connector, connected by header with a transform module
Non-Isolated RS-485	1	DB9 or Phoenix Terminal connector, connected by header with a transform module
Isolated 8-bit GPIO, 9-24V	1	Phoenix Terminal connector, connected by header
Isolated 8-bit GPIO with current loading, 9-26V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
4G Module	1	Connected by Mini-PCIe interface
WiFi Module without AP mode	1	Connected by Mini-PCIe interface, M.2 interface or internal USB interface
WiFi Module with AP mode	1	Connected by Mini-PCIe interface
Dual channel CAN-Bus Module	2	Connected by Mini-PCIe or M.2 interface
Dual GbE PoE LAN Module	1	Connected by Mini-PCIe Interface

Drawings and Dimensions

In stock

Receives in 30 days.

Industrial Box PC IBPC-2301H-3L5C-2P 3 LAN 5 COM 12th/13th/14th CPU

BASCO Industrial PC

Industrial Box PC IBPC-2301H-3L5C-2P 3 LAN 5 COM 12th/13th/14th CPU

(0)

From $2,018.00 USD

the table display is not optimized for mobile devices. Please contact online customer service to obtain the data sheet.

High-performance Industrial Box PC Specification

Model	IBPC-2301H-3L5C-2P
Supported OS	Win 10, Win 11, Linux (Ubuntu, Debian, Kali, CentOS, etc.); Win 10 IoT
Chipset	Intel® H770 Chipset, TDP 6W
CPU	Socket	Intel® Desktop Processors Socket LGA1700
	Series	Gen.12/13/14 Intel® Core™ i3 processor (base TDP up to 65W)	Gen.12/13/14 Intel® Core™ i9/ i7/ i5 processor (base TDP up to 35W)
	Graphic	Intel® UHD Graphics 730, 24 Execution Units	Intel® HD Graphics 770, 32 Execution Units
RAM	Type&Qty	2* Dual-CH DDR4 3200 MHz SO-DIMM Socket, Capacity up to 64GB for single slot
Storage Device	SATA	1* 2.5″ SATA3.0 Bay on daughterboard (6Gb/s); 4* SATA3.0 connectors (6Gb/s), Support RAID 0/1/5/10 (SATA3&4 are colay with PCIex2 of NGFF1)
	MSATA	1* mSATA3.0 slot on board (6Gb/s)
	M.2	1* M.2 2280 M-key slot (NGFF3), support PCIex4 Gen.3 NVMe SSD (From CPU); 1* M.2 2280 M-key slot (NGFF1), support PCIex2 Gen.3 NVMe/ SATA3.0 SSD (From PCH, the PCIex2 signale is colay with SATA 3&4)
I/O Interface	COM	4* Isolated DB9 COM Ports with ESD/EFT/Surge protection (COM1-4, support RS232/485, switchable by jumper); 1* RS232 with DB9 connector (COM5); 1* RS232 header (COM6)
	Ethernet	2* Intel® i210AT GbE LAN, RJ45 connector; 1* Intel® i219LM GbE LAN, RJ45 connector
	USB	4* USB3.2 Gen 2×1 (10Gb/s); 4* USB3.0 (5Gb/s); (USB3.0-1 is colay with M.2 B Key slot, USB3.0-2 is colay with Mini-PCIe slot on motherboard); 2* USB2.0, 1* Internal USB2.0 (480Mb/s, on daughterboard)
	Video	1* HDMI, Support 4096×2304 @24Hz +1* DP, Support 40962160 @60Hz; (Optional 2 DP, Support 4096 x 2304@60Hz); Optional with one more HDMI port, expanded by TP-IPC daughter card, supports 3 independent displays
	Audio	1* MIC, 1* SPK; With 7.1+2 channels HD (High Definition) Audio Codec Realtek ALC897
	SIM	2* External SIM card slot, SIM 1 is connected to M.2 B-key slot, SIM2 is connected to Mini-PCIe slot on daughterboard; (Available with one more internal SIM card slot when using a LTE module with SIM card slot)
	Power Supply	9-36 VDC; 1* Terminal Block (4-Pin, 5.08mm)
	Other	1* 8-bit GPIO, Terminal Block (12-Pin, 3.81mm), 4-Inputs/4-Outputs, 0-5V Input Range; 1* Terminal Block (4-Pin, 3.81mm Pitch) with Remote Switch and Power Indicator; 1* PS/2 for keyboard/ mouse; 1* Auto-On Jumper; 1* TPM header (2*6-pin)
Extended Capabilities	Additional Internal Interface	1* PCIe x4+1* PCIe x16 or 2* PCIe x8 or 1* PCI+1* PCIe x4 or 2* PCI or 1* PCI+1* PCIe x16; (Only PCIex16 is Gen.4); 1* M.2 3042/3052 B-key Slot with SIM card slot1 (USB3.0, USB signal is colay with USB1 on motherboard); 1* Full Size Mini-PCIe Slot (PCIe+USB2.0, on motherboard, without SIM card slot, USB signal iss colay with USB2 on motherboard); 1* Full Size Mini-PCIe Slot with SIM card slot2 (PCIe+USB2.0, on daughterboard); 1* M.2 2230 E-key Slot (PCIe+USB2.0, support CNVi, WiFi+BT)
Environment	Operating Temp.	-10 ~ 55 °C w/ 0.7m/s Airflow
	Storage Temp.	-40 ~ 85 °C (-40~185 °F)
	Relative Humidity	40 °C @ 95%, Non-Condensing
Physical Characteristics	Dimensions	290.35* 132.38* 186 mm (W* H* D)
	Net Weight	4.55 KG
Regulation	EMC	CE/FCC Class B, CCC
	Safety	CE-LVD, RoHS, CCC

Optional Processor

CPU	Code Name	Total Cores	Total Threads	Max Turbo Frequency	Base Frequency	Cache	TDP	Memory Types	Integrated Graphics
Intel® Core™ I3-12100T	Alder Lake	4	8	4.10 GHz	2.20 GHz	12 MB	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-12500T	Alder Lake	6	12	4.40 GHz	2.00 GHz	18 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-12700T	Alder Lake	12	20	4.70 GHz	1.40 GHz	25 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-12900T	Alder Lake	16	24	4.90 GHz	1.40 GHz	30 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-12100	Alder Lake	4	8	4.30 GHz	3.30 GHz	12 MB	65 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-12500	Alder Lake	6	12	4.60 GHz	3.00 GHz	18 MB	65 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-13100T	Raptor Lake	4	8	4.10 GHz	2.20 GHz	12 MB	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-13500T	Raptor Lake	14	20	4.40 GHz	2.00 GHz	24 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-13700T	Raptor Lake	16	24	4.70 GHz	1.40 GHz	30 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-13900T	Raptor Lake	24	32	4.90 GHz	1.40 GHz	36 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-13100	Raptor Lake	4	8	4.30 GHz	3.30 GHz	12 MB	65 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I3-14100T	Raptor Lake	4	8	4.40 GHz	2.70 GHz	12 MB	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-14500T	Raptor Lake	14	20	4.80 GHz	1.70 GHz	24 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-14700T	Raptor Lake	20	28	5.20 GHz	1.30 GHz	33 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-14900T	Raptor Lake	24	32	5.50 GHz	1.10 GHz	36 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-14100	Raptor Lake	4	8	4.70 GHz	3.50 GHz	12 MB	65 W	DDR4	Intel® HD Graphics 730, 24EUs

Optional Accessories

Optional Items	Max Qty	Description
Isolated RS-232	1	DB9 or Phoenix Terminal connector, connected by header
Non-Isolated RS-232	1	DB9 or Phoenix Terminal connector, connected by header
Non-Isolated RS-422	1	DB9 or Phoenix Terminal connector, connected by header with a transform module
Non-Isolated RS-485	1	DB9 or Phoenix Terminal connector, connected by header with a transform module
Isolated 8-bit GPIO, 9-24V	1	Phoenix Terminal connector, connected by header
Isolated 8-bit GPIO with current loading, 9-26V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
4G Module	1	Connected by Mini-PCIe interface
WiFi Module without AP mode	1	Connected by Mini-PCIe interface, M.2 interface or internal USB interface
WiFi Module with AP mode	1	Connected by Mini-PCIe interface
Dual channel CAN-Bus Module	2	Connected by Mini-PCIe or M.2 interface
Dual GbE PoE LAN Module	1	Connected by Mini-PCIe Interface

Drawings and Dimensions

In stock

Receives in 30 days.

Industrial Box PC IBPC-2301H-3L5C-3P 3 LAN 5 COM 12th/13th/14th CPU

BASCO Industrial PC

Industrial Box PC IBPC-2301H-3L5C-3P 3 LAN 5 COM 12th/13th/14th CPU

(0)

From $2,018.00 USD

the table display is not optimized for mobile devices. Please contact online customer service to obtain the data sheet.

High-performance Industrial Box PC Specification

Model	IBPC-2301H-3L5C-3P
Supported OS	Win 10, Win 11, Linux (Ubuntu, Debian, Kali, CentOS, etc.); Win 10 IoT
Chipset	Intel® H770 Chipset, TDP 6W
CPU	Socket	Intel® Desktop Processors Socket LGA1700
	Series	Gen.12/13/14 Intel® Core™ i3 processor (base TDP up to 65W)	Gen.12/13/14 Intel® Core™ i9/ i7/ i5 processor (base TDP up to 35W)
	Graphic	Intel® UHD Graphics 730, 24 Execution Units	Intel® HD Graphics 770, 32 Execution Units
RAM	Type&Qty	2* Dual-CH DDR4 3200 MHz SO-DIMM Socket, Capacity up to 64GB for single slot
Storage Device	SATA	1* 2.5″ SATA3.0 Bay on daughterboard (6Gb/s); 4* SATA3.0 connectors (6Gb/s), Support RAID 0/1/5/10 (SATA3&4 are colay with PCIex2 of NGFF1)
	MSATA	1* mSATA3.0 slot on board (6Gb/s)
	M.2	1* M.2 2280 M-key slot (NGFF3), support PCIex4 Gen.3 NVMe SSD (From CPU); 1* M.2 2280 M-key slot (NGFF1), support PCIex2 Gen.3 NVMe/ SATA3.0 SSD (From PCH, the PCIex2 signale is colay with SATA 3&4)
I/O Interface	COM	4* Isolated DB9 COM Ports with ESD/EFT/Surge protection (COM1-4, support RS232/485, switchable by jumper); 1* RS232 with DB9 connector (COM5); 1* RS232 header (COM6)
	Ethernet	2* Intel® i210AT GbE LAN, RJ45 connector; 1* Intel® i219LM GbE LAN, RJ45 connector
	USB	4* USB3.2 Gen 2×1 (10Gb/s); 4* USB3.0 (5Gb/s); (USB3.0-1 is colay with M.2 B Key slot, USB3.0-2 is colay with Mini-PCIe slot on motherboard); 2* USB2.0, 1* Internal USB2.0 (480Mb/s, on daughterboard)
	Video	1* HDMI, Support 4096×2304 @24Hz +1* DP, Support 40962160 @60Hz; (Optional 2 DP, Support 4096 x 2304@60Hz); Optional with one more HDMI port, expanded by TP-IPC daughter card, supports 3 independent displays
	Audio	1* MIC, 1* SPK; With 7.1+2 channels HD (High Definition) Audio Codec Realtek ALC897
	SIM	2* External SIM card slot, SIM 1 is connected to M.2 B-key slot, SIM2 is connected to Mini-PCIe slot on daughterboard; (Available with one more internal SIM card slot when using a LTE module with SIM card slot)
	Power Supply	9-36 VDC; 1* Terminal Block (4-Pin, 5.08mm)
	Other	1* 8-bit GPIO, Terminal Block (12-Pin, 3.81mm), 4-Inputs/4-Outputs, 0-5V Input Range; 1* Terminal Block (4-Pin, 3.81mm Pitch) with Remote Switch and Power Indicator; 1* PS/2 for keyboard/ mouse; 1* Auto-On Jumper; 1* TPM header (2*6-pin)
Extended Capabilities	Additional Internal Interface	1* PCIe4.0 x16+2* PCI; or 2* PCIe4.0x8+1* PCI; or 3* PCI; 1* M.2 3042/3052 B-key Slot with SIM card slot1 (USB3.0, USB signal is colay with USB1 on motherboard); 1* Full Size Mini-PCIe Slot (PCIe+USB2.0, on motherboard, without SIM card slot, USB signal iss colay with USB2 on motherboard); 1* Full Size Mini-PCIe Slot with SIM card slot2 (PCIe+USB2.0, on daughterboard); 1* M.2 2230 E-key Slot (PCIe+USB2.0, support CNVi, WiFi+BT)
Environment	Operating Temp.	-10 ~ 55 °C w/ 0.7m/s Airflow
	Storage Temp.	-40 ~ 85 °C (-40~185 °F)
	Relative Humidity	40 °C @ 95%, Non-Condensing
Physical Characteristics	Dimensions	290.35* 152.58* 186 mm (W* H* D)
	Net Weight	4.85 KG
Regulation	EMC	CE/FCC Class B, CCC
	Safety	CE-LVD, RoHS, CCC

Optional Processor

CPU	Code Name	Total Cores	Total Threads	Max Turbo Frequency	Base Frequency	Cache	TDP	Memory Types	Integrated Graphics
Intel® Core™ I3-12100T	Alder Lake	4	8	4.10 GHz	2.20 GHz	12 MB	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-12500T	Alder Lake	6	12	4.40 GHz	2.00 GHz	18 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-12700T	Alder Lake	12	20	4.70 GHz	1.40 GHz	25 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-12900T	Alder Lake	16	24	4.90 GHz	1.40 GHz	30 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-12100	Alder Lake	4	8	4.30 GHz	3.30 GHz	12 MB	65 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-12500	Alder Lake	6	12	4.60 GHz	3.00 GHz	18 MB	65 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-13100T	Raptor Lake	4	8	4.10 GHz	2.20 GHz	12 MB	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-13500T	Raptor Lake	14	20	4.40 GHz	2.00 GHz	24 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-13700T	Raptor Lake	16	24	4.70 GHz	1.40 GHz	30 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-13900T	Raptor Lake	24	32	4.90 GHz	1.40 GHz	36 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-13100	Raptor Lake	4	8	4.30 GHz	3.30 GHz	12 MB	65 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I3-14100T	Raptor Lake	4	8	4.40 GHz	2.70 GHz	12 MB	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-14500T	Raptor Lake	14	20	4.80 GHz	1.70 GHz	24 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-14700T	Raptor Lake	20	28	5.20 GHz	1.30 GHz	33 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-14900T	Raptor Lake	24	32	5.50 GHz	1.10 GHz	36 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-14100	Raptor Lake	4	8	4.70 GHz	3.50 GHz	12 MB	65 W	DDR4	Intel® HD Graphics 730, 24EUs

Optional Accessories

Optional Items	Max Qty	Description
Isolated RS-232	1	DB9 or Phoenix Terminal connector, connected by header
Non-Isolated RS-232	1	DB9 or Phoenix Terminal connector, connected by header
Non-Isolated RS-422	1	DB9 or Phoenix Terminal connector, connected by header with a transform module
Non-Isolated RS-485	1	DB9 or Phoenix Terminal connector, connected by header with a transform module
Isolated 8-bit GPIO, 9-24V	1	Phoenix Terminal connector, connected by header
Isolated 8-bit GPIO with current loading, 9-26V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
4G Module	1	Connected by Mini-PCIe interface
WiFi Module without AP mode	1	Connected by Mini-PCIe interface, M.2 interface or internal USB interface
WiFi Module with AP mode	1	Connected by Mini-PCIe interface
Dual channel CAN-Bus Module	2	Connected by Mini-PCIe or M.2 interface
Dual GbE PoE LAN Module	1	Connected by Mini-PCIe Interface

Drawings and Dimensions

In stock

Receives in 30 days.

Industrial Box PC IBPC-2301H-3L5C-Ultra 3 LAN 5 COM 12th/13th/14th CPU

BASCO Industrial PC

Industrial Box PC IBPC-2301H-3L5C-Ultra 3 LAN 5 COM 12th/13th/14th CPU

(0)

From $2,018.00 USD

the table display is not optimized for mobile devices. Please contact online customer service to obtain the data sheet.

High-performance Industrial Box PC Specification

Model	IBPC-2301H-3L5C-Ultra
Supported OS	Win 10, Win 11, Linux (Ubuntu, Debian, Kali, CentOS, etc.); Win 10 IoT
Chipset	Intel® H770 Chipset, TDP 6W
CPU	Socket	Intel® Desktop Processors Socket LGA1700
	Series	Gen.12/13/14 Intel® Core™ i3 processor (base TDP up to 35-219W)	Gen.12/13/14 Intel® Core™ i9/ i7/ i5 processor (base TDP up to 35W)
	Graphic	Intel® UHD Graphics 730, 24 Execution Units	Intel® UHD Graphics 770, 32 Execution Units
RAM	Type&Qty	2* Dual-CH DDR4 3200 MHz SO-DIMM Socket, Capacity up to 128GB
Storage Device	SATA	1* 2.5″ SATA3.0 Bay on daughterboard (6Gb/s); 4* SATA3.0 connectors (6Gb/s), Support RAID 0/1/5/10 (SATA3&4 are colay with PCIex2 of NGFF1)
	mSATA	1* mSATA3.0 slot on board (6Gb/s)
	M.2	1* M.2 2280 M-key slot (NGFF3), support PCIex4 Gen.3 NVMe SSD (From CPU); 1* M.2 2280 M-key slot (NGFF1), support PCIex2 Gen.3 NVMe/ SATA3.0 SSD (From PCH, the PCIex2 signale is colay with SATA 3&4)
I/O Interface	COM	4* Isolated DB9 COM Ports with ESD/EFT/Surge protection (COM1-4, support RS232/485, switchable by jumper); 1* RS232 with DB9 connector (COM5); 1* RS232 header (COM6)
	Ethernet	2* Intel® i210AT + 1* Intel® i219LM GbE LAN, RJ45 connector
	USB	4* USB3.2 Gen 2×1 (10Gb/s); 4* USB3.0 (5Gb/s); (USB3.0-1 is colay with M.2 B Key slot, USB3.0-2 is colay with Mini-PCIe slot on motherboard)
	Video	1* DP, support 7680×4320@60Hz; 1* HDMI, support 4096×2160@24Hz
	Audio	1* MIC, 1* SPK; With 7.1+2 channels HD (High Definition) Audio Codec Realtek ALC897
	SIM	2* External SIM card slot, SIM 1 is connected to M.2 B-key slot, SIM2 is connected to Mini-PCIe slot on daughterboard; (Available with one more internal SIM card slot when using a LTE module with SIM card slot)
	Power Supply	19-36 VDC; 1* Terminal Block (4-Pin, 5.08mm)
	Other	1* 8-bit GPIO, Terminal Block (12-Pin, 3.81mm), 4-Inputs/4-Outputs, 0-5V Input Range; 1* Terminal Block (4-Pin, 3.81mm Pitch) with Remote Switch and Power Indicator; 1* Auto-On Jumper; 1* TPM header (2*6-pin)
Extended Capabilities	Additional Internal Interface	1* PCIe4.0 x16 or 2* PCIe4.0 x8; 1* M.2 3042/3052 B-key Slot with SIM card slot1 (USB3.0, USB signal is colay with USB1 on motherboard); 1* Full Size Mini-PCIe Slot (PCIe+USB2.0, on motherboard, without SIM card slot, USB signal is colay with USB2 on motherboard); 1* Full Size Mini-PCIe Slot with SIM card slot2 (PCIe+USB2.0, on daughterboard, the PCIe signal is colay with one LAN on daughterboard); 1* M.2 2230 E-key Slot (PCIe+USB2.0, support CNVi, WiFi+BT)
Environment	Operating Temp.	-10 ~ 60 °C
	Storage Temp.	-40 ~ 85 °C (-40~185 °F)
	Relative Humidity	40 °C @ 95%, Non-Condensing
Physical Characteristics	Dimensions	290.3* 152.6* 324 mm (W* H* D)
	Net Weight	4.55 KG (The weight does not include graphics card, the final weight is subject to the actual configuration)
Regulation	EMC	CE/FCC Class B, CCC
	Safety	CE-LVD, RoHS, CCC

Optional Processor

CPU	Code Name	Total Cores	Total Threads	Max Turbo Frequency	Base Frequency	Cache	TDP	Memory Types	Integrated Graphics
Intel® Core™ I3-12100T	Alder Lake	4	8	4.10 GHz	2.20 GHz	12 MB	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-12500T	Alder Lake	6	12	4.40 GHz	2.00 GHz	18 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-12700T	Alder Lake	12	20	4.70 GHz	1.40 GHz	25 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-12900T	Alder Lake	16	24	4.90 GHz	1.40 GHz	30 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-12100	Alder Lake	4	8	4.30 GHz	3.30 GHz	12 MB	65 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-12500	Alder Lake	6	12	4.60 GHz	3.00 GHz	18 MB	65 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-13100T	Raptor Lake	4	8	4.10 GHz	2.20 GHz	12 MB	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-13500T	Raptor Lake	14	20	4.40 GHz	2.00 GHz	24 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-13700T	Raptor Lake	16	24	4.70 GHz	1.40 GHz	30 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-13900T	Raptor Lake	24	32	4.90 GHz	1.40 GHz	36 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-13100	Raptor Lake	4	8	4.30 GHz	3.30 GHz	12 MB	65 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I3-14100T	Raptor Lake	4	8	4.40 GHz	2.70 GHz	12 MB	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-14500T	Raptor Lake	14	20	4.80 GHz	1.70 GHz	24 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-14700T	Raptor Lake	20	28	5.20 GHz	1.30 GHz	33 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-14900T	Raptor Lake	24	32	5.50 GHz	1.10 GHz	36 MB	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-14100	Raptor Lake	4	8	4.70 GHz	3.50 GHz	12 MB	65 W	DDR4	Intel® HD Graphics 730, 24EUs

Optional Accessories

Optional Items	Max Qty	Description
Isolated 8-bit GPIO, 9-24V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
Isolated 8-bit GPIO with current loading, 9-26V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
4G Module	1	Connected by Mini-PCIe interface
WiFi Module without AP mode	1	Connected by Mini-PCIe interface, M.2 interface or internal USB interface
WiFi Module with AP mode	1	Connected by Mini-PCIe interface
Dual channel CAN-Bus Module	2	Connected by Mini-PCIe or M.2 interface

Drawings and Dimensions

In stock

Receives in 30 days.

Industrial Box PC IBPC-2301H-9L2C6P-1P 9 LAN 2 COM 6 PoE

BASCO Industrial PC

Industrial Box PC IBPC-2301H-9L2C6P-1P 9 LAN 2 COM 6 PoE

(0)

From $1,523.00 USD

the table display is not optimized for mobile devices. Please contact online customer service to obtain the data sheet.

Industrial Box PC Specification 9 LAN 2 COM 6 PoE Support GPU

Model	IBPC-2301H-9L2C6P-1P
Supported OS	Win 7, Win 8, Win 10, Win 11, Linux (Ubuntu, Debian, Kali, CentOS, etc.); WES 7; Win 10 IoT
Chipset	Intel® H770 Chipset, TDP 6W
CPU	Processor Socket	Intel® Desktop Processors Socket LGA1700
	Series	6th Gen. Intel® Core™ Processor	Intel® Celeron® G4900 Processor	7th-9th Gen. Intel® Core™ Processor
	TDP	Up to 65W	54W	Up to 65W
	Graphic	Intel® UHD Graphics 730, 24 Execution Units	Intel® UHD Graphics 610	7th Gen: Intel® HD Graphics 630 8th/ 9th Gen: Intel® UHD Graphics 630
RAM	Type&Qty	2* Dual-CH DDR4 3200 MHz SO-DIMM Socket, Capacity up to 64GB for single slot
	Frequency	DDR4-1866/2133 MHz	DDR4-2400 MHz	DDR4-2400/2666 MHz
	Capacity	Up to 32GB	Up to 32GB	Up to 32GB
Storage Device	SATA	1* 2.5″ SATA3.0 Bay on board (6Gb/s); 3* SATA3.0 connectors (6Gb/s), Support RAID (0/1/5/10)
	MSATA	1* mSATA3.0 slot on board (6Gb/s)
	M.2	1* M.2 2280 M-key slot (NGFF3), support PCIex4 Gen.3 NVMe SSD (From CPU); 1* M.2 2280 M-key slot (NGFF1), support PCIex2 Gen.3 NVMe/ SATA3.0 SSD (From PCH)
I/O Interface	COM	1* RS232/485 with RJ45 connector, 1* RS232/485 with DB9 connector, switchable by jumper
	Ethernet	2* Intel® i210AT GbE LAN, RJ45 connector; 1* Intel® i219LM GbE LAN, RJ45 connector
	USB	4* USB3.2 Gen 2×1 (10Gb/s); 4* USB3.0 (5Gb/s); 3* USB2.0, 1* Internal USB2.0 (480Mb/s)
	Video	1* DP, Support 40962160 @60Hz; 1 HDMI, Support 4096×2304 @24Hz
	Audio	1* MIC, 1* SPK; With 7.1+2 channels HD Audio Codec Realtek ALC897
	SIM	2* External SIM card slot, SIM 1 connected to M.2 B-key slot, SIM2 connected to Mini-PCIe slot
	Power Supply	9-36 VDC; 1* Terminal Block (4-Pin, 5.08mm)
	Other	1* 8-bit GPIO, Terminal Block (12-Pin, 3.81mm), 4-Inputs/4-Outputs, 0-5V Input Range; 1* Terminal Block (4-Pin, 3.81mm Pitch) with Remote Switch and Power Indicator; 1* PS/2 for keyboard/ mouse; 1* Auto-On Jumper; 1* TPM header (2*6-pin)
Extended Capabilities	Additional Internal Interface	1* PCIe4.0 x16; 1* M.2 3042/3052 B-key Slot with SIM card slot1; 1* Full Size Mini-PCIe Slot; 1* Full Size Mini-PCIe Slot with SIM card slot2; 1* M.2 2230 E-key Slot
Environment	Operating Temperature	-10 ~ 55 °C w/ 0.7m/s Airflow
	Storage Temperature	-40 ~ 85 °C (-40~185 °F)
	Relative Humidity	40 °C @ 95%, Non-Condensing
Physical Characteristics	Dimensions	290.35* 109.28* 190 mm (W* H* D)
	Net Weight	3.9 KG
Regulation	EMC	CE/FCC Class B, CCC
	Safety	CE-LVD, RoHS, CCC

Optional Processor

CPU	Code Name	Total Cores	Total Threads	Max Turbo Frequency	Base Frequency	Cache	TDP	Memory Types	Integrated Graphics
Intel® Core™ I3-12100T	Alder Lake	4	8	4.10 GHz	2.20 GHz	12 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-12500T	Alder Lake	6	12	4.40 GHz	2.00 GHz	18 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-12700T	Alder Lake	12	20	4.70 GHz	1.40 GHz	25 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-12900T	Alder Lake	16	24	4.90 GHz	1.40 GHz	30 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-12100	Alder Lake	4	8	4.30 GHz	3.30 GHz	12 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-12500	Alder Lake	6	12	4.60 GHz	3.00 GHz	18 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-13100T	Raptor Lake	4	8	4.10 GHz	2.20 GHz	12 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-13500T	Raptor Lake	14	20	4.40 GHz	2.00 GHz	24 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-13700T	Raptor Lake	16	24	4.70 GHz	1.40 GHz	30 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-13900T	Raptor Lake	24	32	4.90 GHz	1.40 GHz	36 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-13100	Raptor Lake	4	8	4.30 GHz	3.30 GHz	12 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I3-14100T	Raptor Lake	4	8	4.40 GHz	2.70 GHz	12 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-14500T	Raptor Lake	14	20	4.80 GHz	1.70 GHz	24 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-14700T	Raptor Lake	20	28	5.20 GHz	1.30 GHz	33 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-14900T	Raptor Lake	24	32	5.50 GHz	1.10 GHz	36 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-14100	Raptor Lake	4	8	4.70 GHz	3.50 GHz	12 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 730, 24EUs

Optional Accessories

Optional Items	Max Qty	Description
Isolated RS-232	1	DB9 or Phoenix Terminal connector, connected by header
Non-Isolated RS-232	1	DB9 or Phoenix Terminal connector, connected by header
Non-Isolated RS-422	1	DB9 or Phoenix Terminal connector, connected by header with a transform module
Non-Isolated RS-485	1	DB9 or Phoenix Terminal connector, connected by header with a transform module
Isolated 8-bit GPIO, 9-24V	1	Phoenix Terminal connector, connected by header
Isolated 8-bit GPIO with current loading, 9-26V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
4G Module	1	Connected by Mini-PCIe interface
WiFi Module without AP mode	1	Connected by Mini-PCIe interface, M.2 interface or internal USB interface
WiFi Module with AP mode	1	Connected by Mini-PCIe interface
Dual channel CAN-Bus Module	2	Connected by Mini-PCIe or M.2 interface
Dual GbE PoE LAN Module	1	Connected by Mini-PCIe Interface

Drawings and Dimensions

In stock

Receives in 30 days.

Industrial Box PC IBPC-2301H-9L2C6P-2P 9 LAN 2 COM 6 PoE

BASCO Industrial PC

Industrial Box PC IBPC-2301H-9L2C6P-2P 9 LAN 2 COM 6 PoE

(0)

From $1,538.00 USD

the table display is not optimized for mobile devices. Please contact online customer service to obtain the data sheet.

Industrial Box PC Specification 9 LAN 2 COM 6 PoE Support GPU

Model	IBPC-2301H-9L2C6P-2P
Supported OS	Win 10, Win 11, Linux (Ubuntu, Debian, Kali, CentOS, etc.); Win 10 IoT
Chipset	Intel® H770 Chipset, TDP 6W
CPU	Processor Socket	Intel® Desktop Processors Socket LGA1700
	Series	Gen.12/13/14 Intel® Core™ i3 processor (base TDP up to 65W)	Gen.12/13/14 Intel® Core™ i9/ i7/ i5 processor (base TDP up to 35W)
	TDP	Up to 65W	54W	Up to 65W
	Graphic	Intel® UHD Graphics 730, 24 Execution Units	Intel® HD Graphics 770, 32 Execution Units
RAM	Type&Qty	2* Dual-CH DDR4 3200 MHz SO-DIMM Socket, Capacity up to 64GB for single slot
	Frequency	DDR4-1866/2133 MHz	DDR4-2400 MHz	DDR4-2400/2666 MHz
	Capacity	Up to 32GB	Up to 32GB	Up to 32GB
Storage Device	SATA	1* 2.5″ SATA3.0 Bay on daughterboard (6Gb/s); 4* SATA3.0 connectors (6Gb/s), Support RAID (0/1/5/10)
	MSATA	1* mSATA3.0 slot on board (6Gb/s)
	M.2	1* M.2 (NGFF) 2280 M-key slot, support PCIex4 Gen.3 NVMe SSD (From CPU); 1* M.2 (NGFF) 2280 M-key slot, support PCIex2 Gen.3 NVMe/ SATA3.0 SSD (From PCH)
I/O Interface	COM	1* RS232/485 with RJ45 connector, 1* RS232/485 with DB9 connector, switchable by jumper
	Ethernet	2* Intel® i210AT GbE LAN, RJ45 connector; 1* Intel® i219LM GbE LAN, RJ45 connector
	USB	4* USB3.2 Gen 2×1 (10Gb/s); 4* USB3.0 (5Gb/s); 3* USB2.0, 1* Internal USB2.0
	Video	1* DP, Support 4096×2160 @60Hz; 1* HDMI, Support 4096×2304 @24Hz
	Audio	1* MIC, 1* SPK; With 7.1+2 channels HD Audio Codec Realtek ALC897
	SIM	2* External SIM card slot, SIM 1 connected to M.2 B-key slot, SIM2 connected to Mini-PCIe slot
	Power Supply	9-36 VDC; 1* Terminal Block (4-Pin, 5.08mm)
	Other	1* 8-bit GPIO, Terminal Block (12-Pin, 3.81mm), 4-Inputs/4-Outputs, 0-5V Input Range; 1* Terminal Block (4-Pin, 3.81mm Pitch) with Remote Switch and Power Indicator; 1* PS/2 for keyboard/ mouse; 1* Auto-On Jumper; 1* TPM header (2*6-pin)
Extended Capabilities	Additional Internal Interface	1* PCIe4.0 x16; 1* M.2 3042/3052 B-key Slot with SIM card slot1; 1* Full Size Mini-PCIe Slot; 1* Full Size Mini-PCIe Slot with SIM card slot2; 1* M.2 2230 E-key Slot
Environment	Operating Temperature	-10 ~ 55 °C w/ 0.7m/s Airflow
	Storage Temperature	-40 ~ 85 °C (-40~185 °F)
	Relative Humidity	40 °C @ 95%, Non-Condensing
Physical Characteristics	Dimensions	290.35* 87.58* 186 mm (W* H* D)
	Net Weight	3.9 KG
Regulation	EMC	CE/FCC Class B, CCC
	Safety	CE-LVD, RoHS, CCC

Optional Processor

CPU	Code Name	Total Cores	Total Threads	Max Turbo Frequency	Base Frequency	Cache	TDP	Memory Types	Integrated Graphics
Intel® Core™ I3-12100T	Alder Lake	4	8	4.10 GHz	2.20 GHz	12 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-12500T	Alder Lake	6	12	4.40 GHz	2.00 GHz	18 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-12700T	Alder Lake	12	20	4.70 GHz	1.40 GHz	25 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-12900T	Alder Lake	16	24	4.90 GHz	1.40 GHz	30 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-12100	Alder Lake	4	8	4.30 GHz	3.30 GHz	12 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-12500	Alder Lake	6	12	4.60 GHz	3.00 GHz	18 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-13100T	Raptor Lake	4	8	4.10 GHz	2.20 GHz	12 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-13500T	Raptor Lake	14	20	4.40 GHz	2.00 GHz	24 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-13700T	Raptor Lake	16	24	4.70 GHz	1.40 GHz	30 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-13900T	Raptor Lake	24	32	4.90 GHz	1.40 GHz	36 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-13100	Raptor Lake	4	8	4.30 GHz	3.30 GHz	12 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I3-14100T	Raptor Lake	4	8	4.40 GHz	2.70 GHz	12 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-14500T	Raptor Lake	14	20	4.80 GHz	1.70 GHz	24 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-14700T	Raptor Lake	20	28	5.20 GHz	1.30 GHz	33 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-14900T	Raptor Lake	24	32	5.50 GHz	1.10 GHz	36 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-14100	Raptor Lake	4	8	4.70 GHz	3.50 GHz	12 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 730, 24EUs

Optional Accessories

Optional Items	Max Qty	Description
Isolated RS-232	1	DB9 or Phoenix Terminal connector, connected by header
Non-Isolated RS-232	1	DB9 or Phoenix Terminal connector, connected by header
Non-Isolated RS-422	1	DB9 or Phoenix Terminal connector, connected by header with a transform module
Non-Isolated RS-485	1	DB9 or Phoenix Terminal connector, connected by header with a transform module
Isolated 8-bit GPIO, 9-24V	1	Phoenix Terminal connector, connected by header
Isolated 8-bit GPIO with current loading, 9-26V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
4G Module	1	Connected by Mini-PCIe interface
WiFi Module without AP mode	1	Connected by Mini-PCIe interface, M.2 interface or internal USB interface
WiFi Module with AP mode	1	Connected by Mini-PCIe interface
Dual channel CAN-Bus Module	2	Connected by Mini-PCIe or M.2 interface
Dual GbE PoE LAN Module	1	Connected by Mini-PCIe Interface

Drawings and Dimensions

In stock

Receives in 30 days.

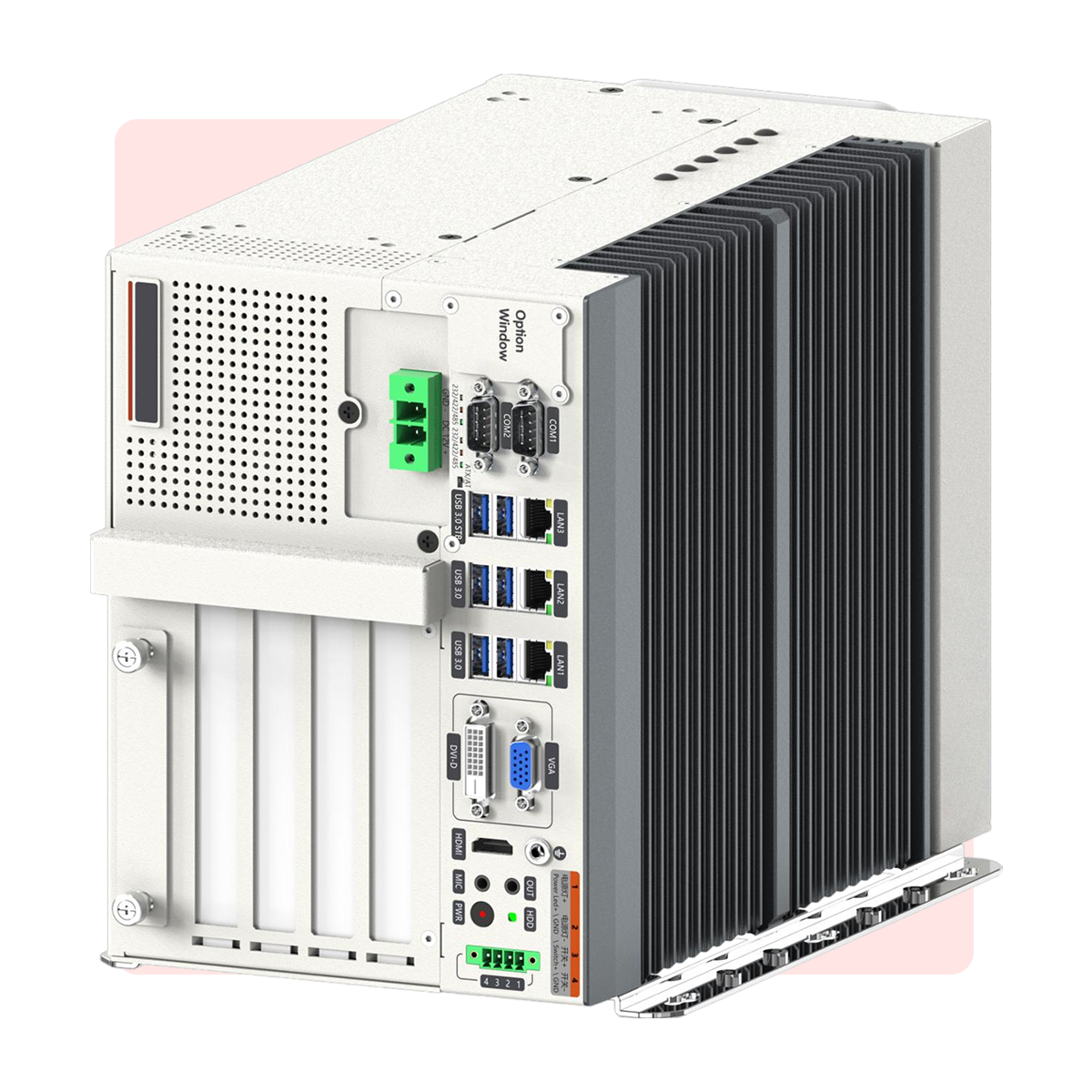

Industrial Box PC IBPC-2301H-9L2C6P-Ultra 9 LAN 2 COM 6 PoE

BASCO Industrial PC

Industrial Box PC IBPC-2301H-9L2C6P-Ultra 9 LAN 2 COM 6 PoE

(0)

From $1,538.00 USD

the table display is not optimized for mobile devices. Please contact online customer service to obtain the data sheet.

Industrial Box PC Specification 9 LAN 2 COM 6 PoE Support GPU

Model	IBPC-2301H-9L2C6P-Ultra
Supported OS	Win 10, Win 11, Linux (Ubuntu, Debian, Kali, CentOS, etc.); Win 10 IoT
Chipset	Intel® H770 Chipset, TDP 6W
CPU	Socket	Intel® Desktop Processors Socket LGA1700
	Series	Gen.12/13/14 Intel® Core™ i3 processor (base TDP up to 65W)	Gen.12/13/14 Intel® Core™ i9/ i7/ i5 processor (base TDP up to 35W)
	Graphic	Intel® UHD Graphics 730, 24 Execution Units	Intel® UHD Graphics 770, 32 Execution Units
RAM	Type&Qty	2* Dual-CH DDR4 3200 MHz SO-DIMM Socket, Capacity up to 128GB
Storage Device	SATA	1* 2.5″ SATA3.0 Bay on daughterboard (6Gb/s); 4* SATA3.0 connectors (6Gb/s), Support RAID (0/1/5/10)
	MSATA	1* mSATA3.0 slot on board (6Gb/s)
	M.2	1* M.2 2280 M-key slot (NGFF3), support PCIex4 Gen.3 NVMe SSD (From CPU); 1* M.2 2280 M-key slot (NGFF1), support PCIex2 Gen.3 NVMe/ SATA3.0 SSD (From PCH)
I/O Interface	COM	1* RS232/485 with RJ45 connector, 1* RS232/485 with DB9 connector, switchable by jumper
	Ethernet	2* Intel® i210AT GbE LAN, RJ45 connector; 1* Intel® i219LM GbE LAN, RJ45 connector
	USB	4* USB3.2 Gen 2×1 (10Gb/s); 4* USB3.0 (5Gb/s)
	Video	1* DP, Support 7680×4320 @60Hz; 1* HDMI, Support 4096×2160 @24Hz
	Audio	1* MIC, 1* SPK; With 7.1+2 channels HD Audio Codec Realtek ALC897
	SIM	2* External SIM card slot, SIM 1 connected to M.2 B-key slot, SIM2 connected to Mini-PCIe slot
	Power Supply	19-36 VDC; 1* Terminal Block (4-Pin, 5.08mm)
	Other	1* 8-bit GPIO, Terminal Block (12-Pin, 3.81mm), 4-Inputs/4-Outputs, 0-5V Input Range
Extended Capabilities	Additional Internal Interface	1* PCIe4.0 x16; 1* M.2 3042/3052 B-key Slot with SIM card slot1; 1* Full Size Mini-PCIe Slot
Environment	Operating Temperature	-10 ~ 55 °C w/ 0.7m/s Airflow
	Storage Temperature	-40 ~ 85 °C (-40~185 °F)
	Relative Humidity	40 °C @ 95%, Non-Condensing
Physical Characteristics	Dimensions	290.3* 152.6* 324 mm (W* H* D)
	Net Weight	4.55 KG
Regulation	EMC	CE/FCC Class B, CCC
	Safety	CE-LVD, RoHS, CCC

Optional Processor

CPU	Code Name	Total Cores	Total Threads	Max Turbo Frequency	Base Frequency	Cache	TDP	Memory Types	Integrated Graphics
Intel® Core™ I3-12100T	Alder Lake	4	8	4.10 GHz	2.20 GHz	12 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-12500T	Alder Lake	6	12	4.40 GHz	2.00 GHz	18 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-12700T	Alder Lake	12	20	4.70 GHz	1.40 GHz	25 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-12900T	Alder Lake	16	24	4.90 GHz	1.40 GHz	30 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-12100	Alder Lake	4	8	4.30 GHz	3.30 GHz	12 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-12500	Alder Lake	6	12	4.60 GHz	3.00 GHz	18 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-13100T	Raptor Lake	4	8	4.10 GHz	2.20 GHz	12 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-13500T	Raptor Lake	14	20	4.40 GHz	2.00 GHz	24 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-13700T	Raptor Lake	16	24	4.70 GHz	1.40 GHz	30 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-13900T	Raptor Lake	24	32	4.90 GHz	1.40 GHz	36 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-13100	Raptor Lake	4	8	4.30 GHz	3.30 GHz	12 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I3-14100T	Raptor Lake	4	8	4.40 GHz	2.70 GHz	12 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-14500T	Raptor Lake	14	20	4.80 GHz	1.70 GHz	24 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-14700T	Raptor Lake	20	28	5.20 GHz	1.30 GHz	33 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-14900T	Raptor Lake	24	32	5.50 GHz	1.10 GHz	36 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-14100	Raptor Lake	4	8	4.70 GHz	3.50 GHz	12 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 730, 24EUs

Optional Accessories

Optional Items	Max Qty	Description
Isolated 8-bit GPIO, 9-24V	1	Phoenix Terminal connector, connected by header
Isolated 8-bit GPIO with current loading, 9-26V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
4G Module	1	Connected by Mini-PCIe interface
WiFi Module without AP mode	1	Connected by Mini-PCIe interface, M.2 interface or internal USB interface
WiFi Module with AP mode	1	Connected by Mini-PCIe interface
Dual channel CAN-Bus Module	2	Connected by Mini-PCIe or M.2 interface
AI computing power acceleration modules	1	Supported frameworks: TensorFlow, TensorFlow Lite, ONNX, Keras, PyTorch
Dual GbE PoE LAN Module	1	Connected by Mini-PCIe Interface

Drawings and Dimensions

In stock

Receives in 30 days.

Industrial BOX PC IBPC-D10 Intel® Q470 / H420E Chipset Supports 10th/11th Gen CPU Flexible & Highly Expandable

BASCO Industrial PC

Industrial BOX PC IBPC-D10 Intel® Q470 / H420E Chipset Supports 10th/11th Gen CPU Flexible & Highly Expandable

(0)

$318.00 USD

In stock

Receives in 30 days.

Industrial BOX PC IBPC-D12 Intel® Q670/H610 Chipset Supports 12th/13th/14th Gen CPU Flexible & Highly Expandable

BASCO Industrial PC

Industrial BOX PC IBPC-D12 Intel® Q670/H610 Chipset Supports 12th/13th/14th Gen CPU Flexible & Highly Expandable

(0)

$338.00 USD

In stock

Receives in 30 days.

BASCO Industrial PC

Industrial Computer BSC-PKD-N100-2C-2L

(0)

From $252.00 USD

Technical Details

Category	Specification
CPU	Intel Alder Lake-N N100/i3-305
BIOS	AMI 128M BIOS（winbond 25Q128JVSQ）Auto Power-on，PXE，WOL
RAM	1*SODIMM DDR5 4800MHz Max 32G
GPU	Intel® UHD Graphics
Display (Multi-Display Support)	HDMI: 1*HDMI2.0 Max 4K 60hz
	DP: 1*DP1.4 Max 4K 60hz
	VGA: 1*VGA Max 1080P 60hz(DP or HDMI Optional)
	TYPEC: 1*TYPEC Max 4K 60hz
ROM	SATA: 1*SATA3.0 6Gb/s
ROM	M.2_SSD(M_KEY): 1*M.2 SSD2280(NGFF/PCIE Adaptive)
LAN	RJ45: 2*RTL8111H(Lan1 can change to pin, Lan2 can modify two USBs)
USB	USB2.0/3.0: External 3USB2.0(2 can changed to pin)+2USB3.2 Gen2+TYPEC3.2 Gen2
COM	DB9: 2*COM RS232(All support RS485)
Audio	3.5mm: Realtek ALC897 7.1 Channel HDA Encoder
Extended Interface	M.2_WIFI(E_KEY): M.2_WIFI(E_KEY) 2230 socket, supports PCIE protocol and CNVI
	M.2_5G(B_KEY): M.2_5G(B_KEY) 3052 Socket USB Protocol
	MPCIE: Supports WIFI/4GPCIE Protocol
	SIM: 1*NANO SIM
	GPIO: Supports 8-channel GPIO
Hardware Detection	WDT: 4~255 second watchdog timer
Hardware Detection	FAN: 4Pin12V SystemFan detection and smart control
Hardware Control	Auto Power-on(JP1): JP1(1-2)AUTO POWER ON，JP1(2-3)NORMAL
Hardware Encryption	TPM: TPM2.0 Hardware Encryption (Optional)
Power	DC_IN: DC12V, DC head 55*25mm
Temperature/Humidity	Operating: -20~60 °C / 0~90% RH, relative humidity, non-condensing
Temperature/Humidity	Storage: -20~60 °C / 0~90% RH, relative humidity, non-condensing
Dimensions	PCB: 120*120mm
Dimensions	Chassis: 14812556mm

Interface Description

Product Dimensions

In stock

Receives in 30 days.

BASCO Industrial PC

Industrial Computer PKD-N305-2C-2L

(0)

From $348.00 USD

Technical Details

Category	Specification
CPU	Intel Alder Lake-N N100/i3-305
BIOS	AMI 128M BIOS（winbond 25Q128JVSQ）Auto Power-on，PXE，WOL
RAM	1*SODIMM DDR5 4800MHz Max 32G
GPU	Intel® UHD Graphics
Display (Multi-Display Support)	HDMI: 1*HDMI2.0 Max 4K 60hz
	DP: 1*DP1.4 Max 4K 60hz
	VGA: 1*VGA Max 1080P 60hz(DP or HDMI Optional)
	TYPEC: 1*TYPEC Max 4K 60hz
ROM	SATA: 1*SATA3.0 6Gb/s
ROM	M.2_SSD(M_KEY): 1*M.2 SSD2280(NGFF/PCIE Adaptive)
LAN	RJ45: 2*RTL8111H(Lan1 can change to pin, Lan2 can modify two USBs)
USB	USB2.0/3.0: External 3USB2.0(2 can changed to pin)+2USB3.2 Gen2+TYPEC3.2 Gen2
COM	DB9: 2*COM RS232(All support RS485)
Audio	3.5mm: Realtek ALC897 7.1 Channel HDA Encoder
Extended Interface	M.2_WIFI(E_KEY): M.2_WIFI(E_KEY) 2230 socket, supports PCIE protocol and CNVI
	M.2_5G(B_KEY): M.2_5G(B_KEY) 3052 Socket USB Protocol
	MPCIE: Supports WIFI/4GPCIE Protocol
	SIM: 1*NANO SIM
	GPIO: Supports 8-channel GPIO
Hardware Detection	WDT: 4~255 second watchdog timer
Hardware Detection	FAN: 4Pin12V SystemFan detection and smart control
Hardware Control	Auto Power-on(JP1): JP1(1-2)AUTO POWER ON，JP1(2-3)NORMAL
Hardware Encryption	TPM: TPM2.0 Hardware Encryption (Optional)
Power	DC_IN: DC12V, DC head 55*25mm
Temperature/Humidity	Operating: -20~60 °C / 0~90% RH, relative humidity, non-condensing
Temperature/Humidity	Storage: -20~60 °C / 0~90% RH, relative humidity, non-condensing
Dimensions	PCB: 120*120mm
Dimensions	Chassis: 14812556mm

Interface Description

Product Dimensions

In stock

Receives in 30 days.

Industrial Embedded Mini PC BSC-HT-J4125-2C-2L

BASCO Industrial PC

Industrial Embedded Mini PC BSC-HT-J4125-2C-2L

(0)

From $202.00 USD

In stock

Receives in 30 days.

Industrial Embedded Panel Touch Screen Monitor IEPM 7" to 27" HD Capacitive or Resistive Touch

BASCO Industrial PC

Industrial Embedded Panel Touch Screen Monitor IEPM 7" to 27" HD Capacitive or Resistive Touch

(0)

From $60.00 USD

In stock

Receives in 30 days.

Industrial Embedded PC BSC-HT-Intel-6th/7th/8th-Gen-CPU-2C-2L-F

BASCO Industrial PC

Industrial Embedded PC BSC-HT-Intel-6th/7th/8th-Gen-CPU-2C-2L-F

(0)

From $171.00 USD

Technical Details

Category	Model	Specifications
Processor	Intel® Core i5-6300U	Dual-core 2.4GHz (up to 3.0GHz Turbo Boost)
	Intel® Core i7-6600U	Dual-core 2.6GHz (up to 3.4GHz Turbo Boost)
	Intel® Core i5-7200U	Dual-core 2.5GHz (up to 3.1GHz Turbo Boost)
	Intel® Core i5-8250U	Quad-core 1.6GHz (up to 3.4GHz Turbo Boost)
Compatible with Intel® Skylake-U or Kaby Lake-U Pentium/Celeron/i3/i5/i7 series low-power processors
Memory	1×SO-DIMM slot, supports dual-channel 2133MHz DDR4 memory, maximum 32GB capacity
Display	Integrated Intel® HD Graphics 540/610/620/650 (varies by CPU model)
	1×VGA or DP interface (supports 4K@60Hz), 1×HDMI interface (supports 4K@30Hz)
	Supports VGA/DP and HDMI synchronous/asynchronous display
Network	2×Realtek RTL8111H Gigabit Ethernet ports (1 optional), supports Wake-on-LAN/PXE
Storage	1×7pin SATA3.0 interface, 6Gbps transfer rate
Storage	1×M.2 Key-M 2280 slot (supports both M.2 PCIE and SATA SSDs)
Audio	Onboard ALC897 7.1-channel HD audio controller, supports MIC/Line-out, amplifier (2Ω 5W dual-channel)
Expansion	1×Mini-PCIe slot (supports WIFI and 4G modules)
Front I/O	1×HDMI display port
	1×VGA display port (alternative to 4K@60Hz DP port, VGA by default)
	2×USB 2.0 ports (option for Type-C ports, USB by default)
	2×RJ-45 Gigabit Ethernet ports (LAN2 and USB2.0 ports are mutually exclusive)
	1×12V DC power input
Rear I/O	1×3.5mm audio jack (supports both Line-OUT and MIC in)
	2×RS232 serial ports (DB9)
	4×USB 3.0 ports
	1×Power button with LED indicator
	1×CMOS clear button
	4×USB 2.0 ports 2×5Pin (supports 6 USB2.0 when dual LAN is enabled)
Internal I/O	2×COM pin headers (not populated by default, optional support for 4 RS232)
	1×Amplifier interface 1×4pin
	1×GPIO pin header 2×5Pin
	1×HDD power interface 1×4Pin
	1×4pin ATX power connector
	1×Front panel switch and LED indicator interface 2×5Pin

Interface Description

Product Dimensions

In stock

Receives in 30 days.

Industrial Fanless PC BSC-HT-J6412-2C-4L-F

BASCO Industrial PC

Industrial Fanless PC BSC-HT-J6412-2C-4L-F

(0)

From $210.00 USD

In stock

Receives in 30 days.

Industrial Fanless PC BSC-HT-N95/N97/N100/N150/N305/N355-2C-2L-F

BASCO Industrial PC

Industrial Fanless PC BSC-HT-N95/N97/N100/N150/N305/N355-2C-2L-F

(0)

From $210.00 USD

In stock

Receives in 30 days.

Industrial Flat Panel Touch Screen Monitor IFPM 7" to 23.8" Capacitive or Resistive Touch

BASCO Industrial PC

Industrial Flat Panel Touch Screen Monitor IFPM 7" to 23.8" Capacitive or Resistive Touch

(0)

From $68.00 USD

In stock

Receives in 30 days.

Industrial High Performance Panel PC BASCO IPPC-24H5-2L6C Series Windows Linuxs 2 LAN 6 COM HDMI VGA

BASCO Industrial PC

Industrial High Performance Panel PC BASCO IPPC-24H5-2L6C Series Windows Linuxs 2 LAN 6 COM HDMI VGA

(0)

From $570.00 USD

the table display is not optimized for mobile devices. Please contact online customer service to obtain the data sheet.

24H5-09S Screen Parameters & Drawings

LCD Display		Touchscreen
Display Type	9.7″ TFT LCD (LED backlight)	Touchscreen Type	5-Wire Resistive	Projected Capacitive	Non-Touchscreen
Resolution	1024*768	Touchscreen Method	Single point	Ten point	–
Luminance	350 cd/m2 (Typ.)	Surface	3H	6H	6H
Viewing Angle	70/70/60/70 (Typ.)(CR>=10)	Durability	1 million touches	–	–
Contrast Ratio	500:1 (Typ.) ( Transmission )	Transparency	75%±8%	85±3%	>88%

Access: IPPC-24H5-2C6L-09S↗

24H5-10W Screen Parameters & Drawings

LCD Display		Touchscreen
Display Type	10.1″ TFT LCD (LED backlight)	Touchscreen Type	Projected Capacitive	Non-Touchscreen
Resolution	1280*800	Touchscreen Method	Ten point	–
Luminance	400 cd/m2 (Typ.)	Surface	6H	6H
Viewing Angle	85/85/85/85 (Typ.)(CR>=10)	Durability	–	–
Contrast Ratio	800:1 (Typ.) ( Transmission )	Transparency	85±3%	>88%

Access: IPPC-24H5-2C6L-10W↗

24H5-12S Screen Parameters & Drawings

LCD Display		Touchscreen
Display Type	12″ TFT LCD (LED backlight)	Touchscreen Type	5-Wire Resistive	Projected Capacitive	Non-Touchscreen
Resolution	1024 * 768	Touchscreen Method	Single point	Ten point	–
Luminance	500 cd/m2 (Typ.)	Surface	3H	6H	6H
Viewing Angle	88/88/88/88 (Typ.)(CR>=10)	Durability	1 million touches	–	–
Contrast Ratio	1200:1 (Typ.) ( Transmission )	Transparency	75%±8%	85±3%	>88%

Access: IPPC-24H5-2C6L-12S↗

24H5-12W Screen Parameters & Drawings

LCD Display		Touchscreen
Display Type	12.1″ TFT LCD (LED backlight)	Touchscreen Type	5-Wire Resistive	Projected Capacitive	Non-Touchscreen
Resolution	1280 * 800	Touchscreen Method	Single point	Ten point	–
Luminance	400 cd/m2 (Typ.)	Surface	3H	6H	6H
Viewing Angle	80/80/65/80 (Typ.)(CR>=10)	Durability	1 million touches	–	–
Contrast Ratio	800:1 (Typ.) ( Transmission )	Transparency	75%±8%	85±3%	>88%

Access: IPPC-24H5-2C6L-12W↗

24H5-15S Screen Parameters & Drawings

LCD Display		Touchscreen
Display Type	15″ TFT LCD (LED backlight)	Touchscreen Type	5-Wire Resistive	Projected Capacitive	Non-Touchscreen
Resolution	1024 * 768	Touchscreen Method	Single point	Ten point	–
Luminance	350 cd/m2 (Typ.)	Surface	3H	6H	6H
Viewing Angle	89/89/89/89 (Typ.)(CR>=10)	Durability	1 million touches	–	–
Contrast Ratio	1000:1 (Typ.) ( Transmission )	Transparency	75%±8%	85±3%	>88%

Access: IPPC-24H5-2C6L-15S↗

24H5-15W Screen Parameters & Drawings

LCD Display		Touchscreen
Display Type	15.6″ TFT LCD (LED backlight)	Touchscreen Type	Projected Capacitive	Non-Touchscreen
Resolution	1920*1080	Touchscreen Method	Ten point	–
Luminance	400 cd/m2 (Typ.)	Surface	6H	6H
Viewing Angle	70/70/60/60 (Typ.)(CR>=10)	Durability	–	–
Contrast Ratio	500:1 (Typ.) ( Transmission )	Transparency	85±3%	>88%

Access: IPPC-24H5-2C6L-15W↗

24H5-17S Screen Parameters & Drawings

LCD Display		Touchscreen
Display Type	17″ TFT LCD (LED backlight)	Touchscreen Type	5-Wire Resistive	Projected Capacitive	Non-Touchscreen
Resolution	1280 * 1024	Touchscreen Method	Single point	Ten point	–
Luminance	250 cd/m2 (Typ.)	Surface	3H	6H	6H
Viewing Angle	85/85/80/80 (Typ.)(CR>=10)	Durability	1 million touches	–	–
Contrast Ratio	1000 : 1 (Typ.) ( Transmission )	Transparency	75%±8%	85±3%	>88%

Access: IPPC-24H5-2C6L-17S↗

24H5-19S Screen Parameters & Drawings

LCD Display		Touchscreen
Display Type	19″ TFT LCD (LED backlight)	Touchscreen Type	5-Wire Resistive	Projected Capacitive	Non-Touchscreen
Resolution	1280 * 1024	Touchscreen Method	Single point	Ten point	–
Luminance	250 cd/m2 (Typ.)	Surface	3H	6H	6H
Viewing Angle	85/85/80/80 (Typ.)(CR>=10)	Durability	1 million touches	–	–
Contrast Ratio	1000 : 1 (Typ.) ( Transmission )	Transparency	75%±8%	85±3%	>88%

Access: IPPC-24H5-2C6L-19S↗

24H5-19W Screen Parameters & Drawings

LCD Display		Touchscreen
Display Type	19.5″ TFT LCD (LED backlight)	Touchscreen Type	Projected Capacitive	Non-Touchscreen
Resolution	1920*1080	Touchscreen Method	Ten point	–
Luminance	250 cd/m2 (Typ.)	Surface	6H	6H
Viewing Angle	89/89/89/89 (Typ.)(CR>=10)	Durability	–	–
Contrast Ratio	3000 : 1 (Typ.) ( Transmission )	Transparency	85±3%	>88%

Access: IPPC-24H5-2C6L-19W↗

24H5-21W Screen Parameters & Drawings

LCD Display		Touchscreen
Display Type	21.5″ TFT LCD (LED backlight)	Touchscreen Type	Projected Capacitive	Non-Touchscreen
Resolution	1920*1080	Touchscreen Method	Ten point	–
Luminance	250 cd/m2 (Typ.)	Surface	6H	6H
Viewing Angle	89/89/89/89 (Typ.)(CR>=10)	Durability	–	–
Contrast Ratio	3000 : 1 (Typ.) ( Transmission )	Transparency	85±3%	>88%

Access: IPPC-24H5-2C6L-21W↗

24H5-23W Screen Parameters & Drawings

LCD Display		Touchscreen
Display Type	23.6″ TFT LCD (LED backlight)	Touchscreen Type	Projected Capacitive	Non-Touchscreen
Resolution	1920*1080	Touchscreen Method	Ten point	–
Luminance	250 cd/m2 (Typ.)	Surface	6H	6H
Viewing Angle	89/89/89/89 (Typ.)(CR>=10)	Durability	–	–
Contrast Ratio	3000 : 1 (Typ.) ( Transmission )	Transparency	85±3%	>88%

Access: IPPC-24H5-2C6L-23W↗

In stock

Receives in 30 days.

Industrial High Performance Panel PC BASCO IPPC-24H5-2L6C-09S 2 LAN 6 COM

BASCO Industrial PC

Industrial High Performance Panel PC BASCO IPPC-24H5-2L6C-09S 2 LAN 6 COM

(0)

From $570.00 USD

In stock

Receives in 30 days.

Industrial High Performance Panel PC BASCO IPPC-24H5-2L6C-10W 2 LAN 6 COM

BASCO Industrial PC

Industrial High Performance Panel PC BASCO IPPC-24H5-2L6C-10W 2 LAN 6 COM

(0)

From $520.83 USD

In stock

Receives in 30 days.

Industrial High Performance Panel PC BASCO IPPC-24H5-2L6C-12S 2 LAN 6 COM

BASCO Industrial PC

Industrial High Performance Panel PC BASCO IPPC-24H5-2L6C-12S 2 LAN 6 COM

(0)

From $554.17 USD

In stock

Receives in 30 days.

Industrial High Performance Panel PC BASCO IPPC-24H5-2L6C-12W 2 LAN 6 COM

BASCO Industrial PC

Industrial High Performance Panel PC BASCO IPPC-24H5-2L6C-12W 2 LAN 6 COM

(0)

From $554.17 USD

In stock

Receives in 30 days.

Industrial High Performance Panel PC BASCO IPPC-24H5-2L6C-15S 2 LAN 6 COM

BASCO Industrial PC

Industrial High Performance Panel PC BASCO IPPC-24H5-2L6C-15S 2 LAN 6 COM

(0)

From $537.50 USD

In stock

Receives in 30 days.

Industrial High Performance Panel PC BASCO IPPC-24H5-2L6C-15W 2 LAN 6 COM

BASCO Industrial PC

Industrial High Performance Panel PC BASCO IPPC-24H5-2L6C-15W 2 LAN 6 COM

(0)

From $570.83 USD

In stock

Receives in 30 days.

Industrial High Performance Panel PC BASCO IPPC-24H5-2L6C-17S 2 LAN 6 COM

BASCO Industrial PC

Industrial High Performance Panel PC BASCO IPPC-24H5-2L6C-17S 2 LAN 6 COM

(0)

From $570.83 USD

In stock

Receives in 30 days.

Industrial High Performance Panel PC BASCO IPPC-24H5-2L6C-19S 2 LAN 6 COM

BASCO Industrial PC

Industrial High Performance Panel PC BASCO IPPC-24H5-2L6C-19S 2 LAN 6 COM

(0)

From $605.83 USD

In stock

Receives in 30 days.

Industrial High Performance Panel PC BASCO IPPC-24H5-2L6C-19W 2 LAN 6 COM

BASCO Industrial PC

Industrial High Performance Panel PC BASCO IPPC-24H5-2L6C-19W 2 LAN 6 COM

(0)

From $605.83 USD

In stock

Receives in 30 days.

Processor	Integrated Intel® Celeron N95/N97/N100/N150/N305/N355 Quad-Core Processor
BIOS	AMI EFI BIOS with auto power-on, PXE, WOL
Memory	1*SODIMM DDR4 3200MHz Max 32GB
GPU	Integrated Intel® UHD Graphics
Display (Multi-display support)	HDMI	1*HDMI2.0 Max 4K @60Hz (expandable to additional port)
	DP/VGA	1DP1.2 4K @60Hz or 1VGA 1080P @30Hz (selectable)
Storage	SATA	1*SATA3.0 6Gbps
	M.2	1*M.2 Key-M 2280
Network	RJ45	2*Realtek Gigabit Ethernet
USB	USB2.0/3.0	4USB3.0 + 2USB2.0
Built-in I/O	Interfaces	1TPM2.0 pin header (2 6Pin), 1HDD power connector, 1 4pin power socket, 1 * 2 * 5Pin GPIO header
Serial Port	DB9	2*COM RS232 (can be modified to support RS485 via hardware)
Expansion Interfaces	MPCIE	Supports WIFI/4G PCIE protocol
	SIM	1*Nano SIM slot
	GPIO	Supports 8-channel GPIO
Hardware Monitoring	Watchdog	4~255 seconds watchdog timer
	Fan	4Pin 12V CPU Fan detection & smart control (Optional)
Hardware Control	Auto Power-on (AX-ATX1)	AX-ATX(1-2)Default, AX-ATX(2-3)Auto Power-on
Power Supply	DC_IN	DC 12V, DC jack 5.5 * 2.5mm
Temperature/Humidity	Operating	-10~60°C/5~95% RH, non-condensing
	Storage	-20~70°C/5~95% RH, non-condensing
Dimensions	PCB Size	120 * 120mm
	Chassis Size	148 * 126 * 56mm

Production

for Industry

With Confidence

Your Enterprise

Your Process

Contact us

Contact information

Production

for Industry

With Confidence

Your Enterprise

Your Process

Product Comparison

Collection description

Processor	Intel Gemini Lake-R J4125
BIOS	AMI 64M BIOS (winbond 25Q64JWSIQ) with auto power-on, PXE, WOL
Memory	1*SODIMM DDR4 2400MHz Max 16GB
GPU	Intel® UHD Graphics 600
Display (Multi-display support)	HDMI	1*HDMI1.4 Max 4K @30Hz
	VGA	1*VGA Max 1080P @60Hz (Optional HDMI) (CS5212 solution)
Storage	SATA	1*SATA3.0 6Gb/s
	MSATA	1*MSATA3.0 6Gb/s (Optional MPCIE)
Network	RJ45	2*RTL8111H (Lan1 can be modified to pin header, Lan2 can be modified to two USB ports)
USB	USB2.0/3.0	2USB2.0 external (can be modified to pin header) + 4USB3.0 + 2*USB2.0 internal
Serial Port	DB9	2*COM RS232 (both support RS485, internal pin header) (Expandable to COM3/4 with 2.0mm pin header)
Audio	3.5mm	Realtek ALC897 7.1 channel HDA codec
Expansion Interfaces	MPCIE	Supports WIFI/4G PCIE protocol
	SIM	1*Nano SIM slot
	GPIO	Supports 8-channel GPIO
Hardware Monitoring	Watchdog	Watchdog timer
Hardware Control	Auto Power-on	AUTOPWR(1-2)NORMAL, AUTOPWR(2-3)AUTO POWER ON
Power Supply	DC_IN	DC 12V, DC jack 55 * 25mm
Temperature/Humidity	Operating	-20~60°C/5~95% RH, non-condensing
	Storage	-20~70°C/5~95% RH, non-condensing
Dimensions	PCB Size	120 * 120mm
	Chassis Size	145 * 127 * 37mm

Processor	Intel® Celeron J6412 2.0GHz
BIOS	128Mb Flash ROM with auto power-on, PXE, WOL
Memory	2*SODIMM DDR4 3200MHz Max 32GB (Total 64GB)
GPU	Intel® UHD Graphics
Display (Multi-display support)	HDMI	1*HDMI2.0 4K @60Hz
	DP	1*DP1.2 Max 4K @60Hz
Storage	SATA	1*SATA3.0 6Gb/s
	M.2	1*M.2 Key-M 2280/2242 (Default 2280, NGFF/PCIE auto-switching)
Network	RJ45	4*Intel i225/i226 2.5G Ethernet
USB	USB2.0/3.0	4USB2.0 + 2USB3.0
Serial Port	DB9	2*COM RS232 (COM1 can be modified to support RS485 via hardware)
Expansion Interfaces	MPCIE	Supports WIFI/4G PCIE protocol
	SIM	1*Nano SIM slot
	GPIO	Supports 8-channel GPIO (4 input, 4 output)
Hardware Monitoring	Watchdog	Watchdog timer
	Fan	4Pin 12V CPU Fan detection & smart control (Optional)
Hardware Control	Auto Power-on	AUTOPWR(1-2)NORMAL, AUTOPWR(2-3)AUTO POWER ON
Power Supply	DC_IN	DC 12V, DC jack 5.5 * 2.5mm
Temperature/Humidity	Operating	-10~60°C/5~95% RH, non-condensing
	Storage	-20~70°C/5~95% RH, non-condensing
Dimensions	PCB Size	120 * 120mm
	Chassis Size	148 * 125 * 56mm

Production

for Industry

With Confidence

Your Enterprise

Your Process

Production

for Industry

With Confidence

Your Enterprise

Your Process

MAXIMIZEBF

Explore Related Collections

Collection description
