BASCO Industrial PC

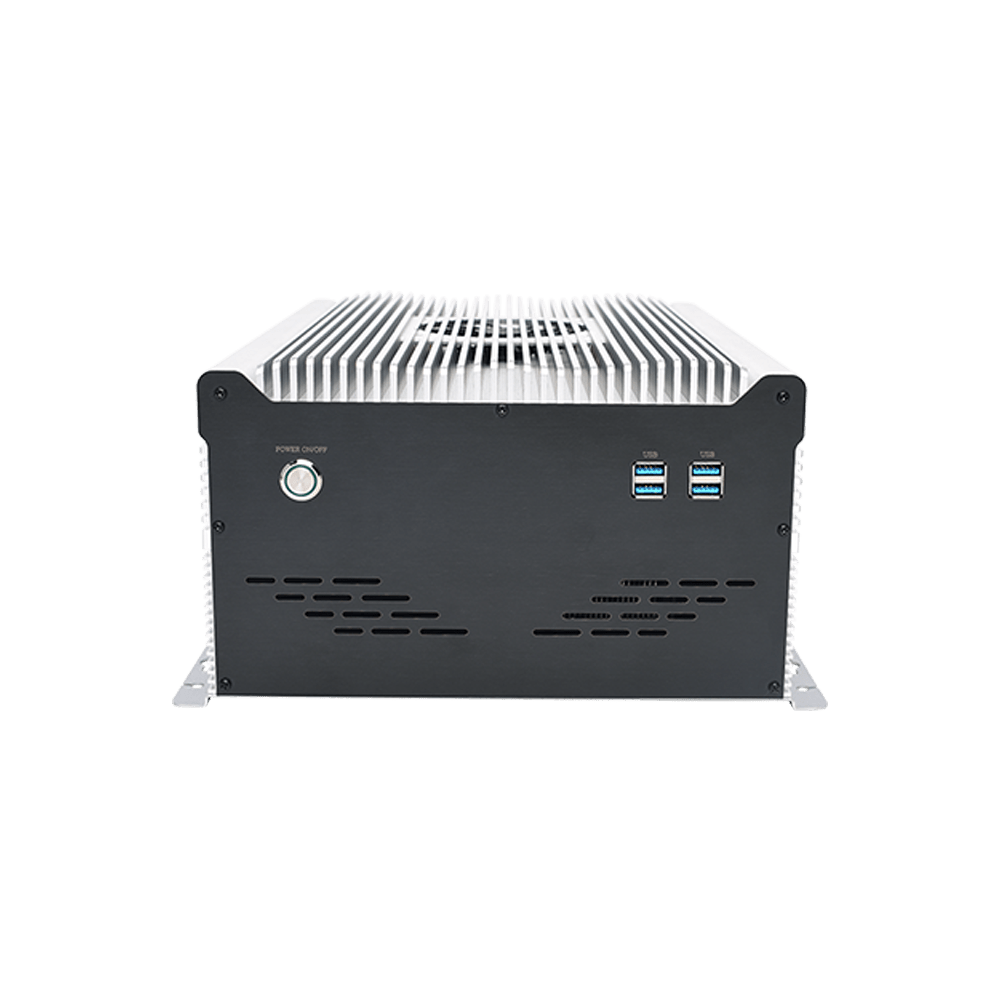

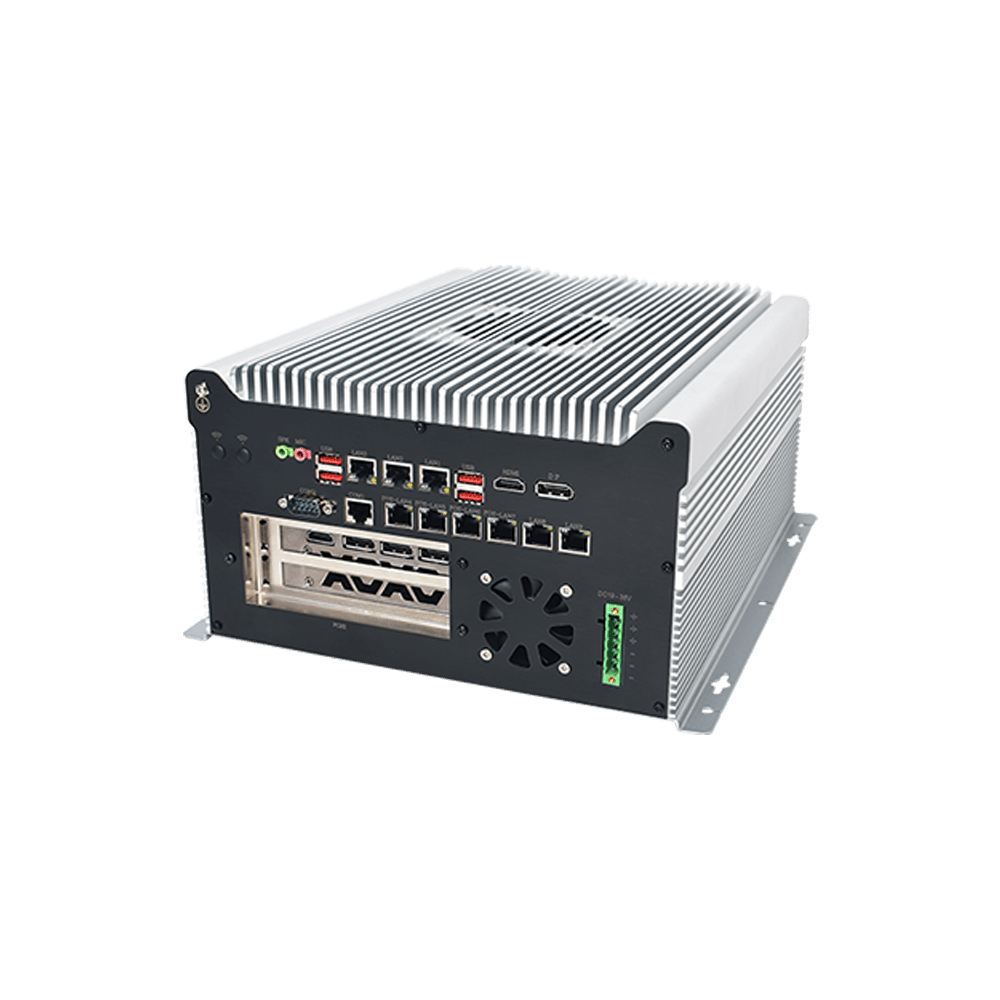

Industrial Box PC IBPC-2301H-9L2C6P-Ultra 9 LAN 2 COM 6 PoE
$0.00 USD
the table display is not optimized for mobile devices. Please contact online customer service to obtain the data sheet.
Industrial Box PC Specification 9 LAN 2 COM 6 PoE Support GPU
| Model | IBPC-2301H-9L2C6P-Ultra | ||
| Supported OS | Win 10, Win 11, Linux (Ubuntu, Debian, Kali, CentOS, etc.); Win 10 IoT | ||
| Chipset | Intel® H770 Chipset, TDP 6W | ||
| CPU | Socket | Intel® Desktop Processors Socket LGA1700 | |
| Series | Gen.12/13/14 Intel® Core™ i3 processor (base TDP up to 65W) | Gen.12/13/14 Intel® Core™ i9/ i7/ i5 processor (base TDP up to 35W) | |
| Graphic | Intel® UHD Graphics 730, 24 Execution Units | Intel® UHD Graphics 770, 32 Execution Units | |
| RAM | Type&Qty | 2* Dual-CH DDR4 3200 MHz SO-DIMM Socket, Capacity up to 128GB | |
| Storage Device | SATA | 1* 2.5″ SATA3.0 Bay on daughterboard (6Gb/s); 4* SATA3.0 connectors (6Gb/s), Support RAID (0/1/5/10) | |
| MSATA | 1* mSATA3.0 slot on board (6Gb/s) | ||
| M.2 | 1* M.2 2280 M-key slot (NGFF3), support PCIex4 Gen.3 NVMe SSD (From CPU); 1* M.2 2280 M-key slot (NGFF1), support PCIex2 Gen.3 NVMe/ SATA3.0 SSD (From PCH) | ||
| I/O Interface | COM | 1* RS232/485 with RJ45 connector, 1* RS232/485 with DB9 connector, switchable by jumper | |
| Ethernet | 2* Intel® i210AT GbE LAN, RJ45 connector; 1* Intel® i219LM GbE LAN, RJ45 connector | ||
| USB | 4* USB3.2 Gen 2×1 (10Gb/s); 4* USB3.0 (5Gb/s) | ||
| Video | 1* DP, Support 7680×4320 @60Hz; 1* HDMI, Support 4096×2160 @24Hz | ||
| Audio | 1* MIC, 1* SPK; With 7.1+2 channels HD Audio Codec Realtek ALC897 | ||
| SIM | 2* External SIM card slot, SIM 1 connected to M.2 B-key slot, SIM2 connected to Mini-PCIe slot | ||
| Power Supply | 19-36 VDC; 1* Terminal Block (4-Pin, 5.08mm) | ||
| Other | 1* 8-bit GPIO, Terminal Block (12-Pin, 3.81mm), 4-Inputs/4-Outputs, 0-5V Input Range | ||
| Extended Capabilities | Additional Internal Interface | 1* PCIe4.0 x16; 1* M.2 3042/3052 B-key Slot with SIM card slot1; 1* Full Size Mini-PCIe Slot | |
| Environment | Operating Temperature | -10 ~ 55 °C w/ 0.7m/s Airflow | |
| Storage Temperature | -40 ~ 85 °C (-40~185 °F) | ||
| Relative Humidity | 40 °C @ 95%, Non-Condensing | ||
| Physical Characteristics | Dimensions | 290.3* 152.6* 324 mm (W* H* D) | |
| Net Weight | 4.55 KG | ||
| Regulation | EMC | CE/FCC Class B, CCC | |
| Safety | CE-LVD, RoHS, CCC | ||
Optional Processor
| CPU | Code Name | Total Cores | Total Threads | Max Turbo Frequency | Base Frequency | Cache | TDP | Memory Types | Integrated Graphics |
| Intel® Core™ I3-12100T | Alder Lake | 4 | 8 | 4.10 GHz | 2.20 GHz | 12 MB Intel® Smart Cache | 35 W | DDR4 | Intel® HD Graphics 730, 24EUs |
| Intel® Core™ I5-12500T | Alder Lake | 6 | 12 | 4.40 GHz | 2.00 GHz | 18 MB Intel® Smart Cache | 35 W | DDR4 | Intel® HD Graphics 770, 32EUs |
| Intel® Core™ I7-12700T | Alder Lake | 12 | 20 | 4.70 GHz | 1.40 GHz | 25 MB Intel® Smart Cache | 35 W | DDR4 | Intel® HD Graphics 770, 32EUs |
| Intel® Core™ I9-12900T | Alder Lake | 16 | 24 | 4.90 GHz | 1.40 GHz | 30 MB Intel® Smart Cache | 35 W | DDR4 | Intel® HD Graphics 770, 32EUs |
| Intel® Core™ I3-12100 | Alder Lake | 4 | 8 | 4.30 GHz | 3.30 GHz | 12 MB Intel® Smart Cache | 65 W | DDR4 | Intel® HD Graphics 730, 24EUs |
| Intel® Core™ I5-12500 | Alder Lake | 6 | 12 | 4.60 GHz | 3.00 GHz | 18 MB Intel® Smart Cache | 65 W | DDR4 | Intel® HD Graphics 770, 32EUs |
| Intel® Core™ I3-13100T | Raptor Lake | 4 | 8 | 4.10 GHz | 2.20 GHz | 12 MB Intel® Smart Cache | 35 W | DDR4 | Intel® HD Graphics 730, 24EUs |
| Intel® Core™ I5-13500T | Raptor Lake | 14 | 20 | 4.40 GHz | 2.00 GHz | 24 MB Intel® Smart Cache | 35 W | DDR4 | Intel® HD Graphics 770, 32EUs |
| Intel® Core™ I7-13700T | Raptor Lake | 16 | 24 | 4.70 GHz | 1.40 GHz | 30 MB Intel® Smart Cache | 35 W | DDR4 | Intel® HD Graphics 770, 32EUs |
| Intel® Core™ I9-13900T | Raptor Lake | 24 | 32 | 4.90 GHz | 1.40 GHz | 36 MB Intel® Smart Cache | 35 W | DDR4 | Intel® HD Graphics 770, 32EUs |
| Intel® Core™ I3-13100 | Raptor Lake | 4 | 8 | 4.30 GHz | 3.30 GHz | 12 MB Intel® Smart Cache | 65 W | DDR4 | Intel® HD Graphics 730, 24EUs |
| Intel® Core™ I3-14100T | Raptor Lake | 4 | 8 | 4.40 GHz | 2.70 GHz | 12 MB Intel® Smart Cache | 35 W | DDR4 | Intel® HD Graphics 730, 24EUs |
| Intel® Core™ I5-14500T | Raptor Lake | 14 | 20 | 4.80 GHz | 1.70 GHz | 24 MB Intel® Smart Cache | 35 W | DDR4 | Intel® HD Graphics 770, 32EUs |
| Intel® Core™ I7-14700T | Raptor Lake | 20 | 28 | 5.20 GHz | 1.30 GHz | 33 MB Intel® Smart Cache | 35 W | DDR4 | Intel® HD Graphics 770, 32EUs |
| Intel® Core™ I9-14900T | Raptor Lake | 24 | 32 | 5.50 GHz | 1.10 GHz | 36 MB Intel® Smart Cache | 35 W | DDR4 | Intel® HD Graphics 770, 32EUs |
| Intel® Core™ I3-14100 | Raptor Lake | 4 | 8 | 4.70 GHz | 3.50 GHz | 12 MB Intel® Smart Cache | 65 W | DDR4 | Intel® HD Graphics 730, 24EUs |
Optional Accessories
| Optional Items | Max Qty | Description |
| Isolated 8-bit GPIO, 9-24V | 1 | Phoenix Terminal connector, connected by header |
| Isolated 8-bit GPIO with current loading, 9-26V | 1 | Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface |
| 4G Module | 1 | Connected by Mini-PCIe interface |
| WiFi Module without AP mode | 1 | Connected by Mini-PCIe interface, M.2 interface or internal USB interface |
| WiFi Module with AP mode | 1 | Connected by Mini-PCIe interface |
| Dual channel CAN-Bus Module | 2 | Connected by Mini-PCIe or M.2 interface |
| AI computing power acceleration modules | 1 | Supported frameworks: TensorFlow, TensorFlow Lite, ONNX, Keras, PyTorch |
| Dual GbE PoE LAN Module | 1 | Connected by Mini-PCIe Interface |
Drawings and Dimensions
