BASCO Industrial PC
Rugged Mini PC BSC-HT-N2840/J1900-2C-2L
$94.00 USD
Technical Details
| Processor | Intel Bay_Trail Celeron J1900 / N2840 | |
| BIOS | AMI 64M BIOS (winbond 25Q64JWSIQ), Auto Power-On, PXE, WOL | |
| Memory | 1*SODIMM DDR3L 1333MHz, Max 8GB | |
| GPU | Intel® HD Graphics | |
| Display (Multi-display Support) | HDMI | 1*HDMI1.2, Max 1080P 60Hz |
| VGA | 1*VGA, Max 1080P 60Hz (HDMI optional) | |
| Storage | SATA | 1*SATA2.0 3Gb/s |
| mSATA | 1*mSATA2.0 3Gb/s (mPCIe optional) | |
| Networking | RJ45 | 2*RTL8111H Gigabit Ethernet |
| USB | USB2.0 / 3.0 | External 5*USB2.0 (header convertible, FE1 solution) + 1*USB3.0 + Internal 1*USB2.0 (shared with 4G) |
| Serial Port | DB9 | 2*COM RS232 (both support RS485, internal headers) (expandable to COM3/4 with 2.0mm headers) |
| Audio | 3.5mm | Realtek ALC897, 7.1 channel HDA codec |
| Expansion Interfaces | mPCIe | Supports WiFi / 4G PCIe protocol |
| SIM | 1*Nano SIM slot | |
| GPIO | Supports 8-channel GPIO | |
| Hardware Monitoring | Watchdog | Watchdog timer |
| Hardware Control | Auto Power-On (AX-ATX) | AX-ATX(1-2) NORMAL, AX-ATX(2-3) AUTO POWER ON |
| Power Supply | DC_IN | DC 12V, 5.5 * 2.5mm DC jack |
| Operating Conditions | Operating | -20~60℃ / 5~95% RH, non-condensing |
| Storage | -20~70℃ / 5~95% RH, non-condensing | |
| Dimensions | PCB Size | 120 * 120mm |
| Chassis Size | 145 * 127 * 37mm | |
Interface Description

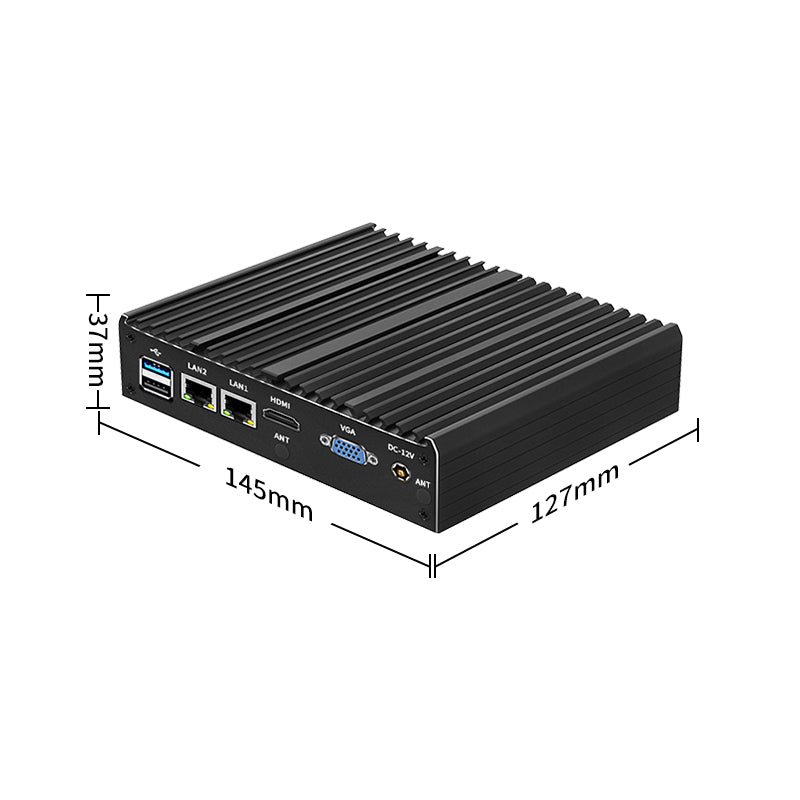

Product Dimensions
BASCO Industrial PC
Rugged Mini PC BSC-HT-N2840/J1900-2C-2L
$94.00 USD
Price Match
We check our prices every day to ensure we can bring you the best price possible. In the unlikely case that you have found a cheaper price then please contact us by (+86) 189 3816 7175 and we'll do our best to answer your query right away!
Multibuy Discounts
Planning to implement a systematic industrial control project? We offer customized project solutions and discounts. Please call us at (+86) 189 3816 7175 for more details and your tailored quote.
Pay with
Your transaction is protected with advanced security measures to keep your information confidential
$94.00 USD
$94.00 USD
About Rugged Mini PC BSC-HT-N2840/J1900-2C-2L
Technical Details
| Processor | Intel Bay_Trail Celeron J1900 / N2840 | |
| BIOS | AMI 64M BIOS (winbond 25Q64JWSIQ), Auto Power-On, PXE, WOL | |
| Memory | 1*SODIMM DDR3L 1333MHz, Max 8GB | |
| GPU | Intel® HD Graphics | |
| Display (Multi-display Support) | HDMI | 1*HDMI1.2, Max 1080P 60Hz |
| VGA | 1*VGA, Max 1080P 60Hz (HDMI optional) | |
| Storage | SATA | 1*SATA2.0 3Gb/s |
| mSATA | 1*mSATA2.0 3Gb/s (mPCIe optional) | |
| Networking | RJ45 | 2*RTL8111H Gigabit Ethernet |
| USB | USB2.0 / 3.0 | External 5*USB2.0 (header convertible, FE1 solution) + 1*USB3.0 + Internal 1*USB2.0 (shared with 4G) |
| Serial Port | DB9 | 2*COM RS232 (both support RS485, internal headers) (expandable to COM3/4 with 2.0mm headers) |
| Audio | 3.5mm | Realtek ALC897, 7.1 channel HDA codec |
| Expansion Interfaces | mPCIe | Supports WiFi / 4G PCIe protocol |
| SIM | 1*Nano SIM slot | |
| GPIO | Supports 8-channel GPIO | |
| Hardware Monitoring | Watchdog | Watchdog timer |
| Hardware Control | Auto Power-On (AX-ATX) | AX-ATX(1-2) NORMAL, AX-ATX(2-3) AUTO POWER ON |
| Power Supply | DC_IN | DC 12V, 5.5 * 2.5mm DC jack |
| Operating Conditions | Operating | -20~60℃ / 5~95% RH, non-condensing |
| Storage | -20~70℃ / 5~95% RH, non-condensing | |
| Dimensions | PCB Size | 120 * 120mm |
| Chassis Size | 145 * 127 * 37mm | |
Interface Description
Product Dimensions
