BASCO Industrial PC
Industrial Computer BSC-PKD-N100-2C-2L
$252.00 USD
Technical Details
| Category | Specification |
|---|---|
| CPU | Intel Alder Lake-N N100/i3-305 |
| BIOS | AMI 128M BIOS（winbond 25Q128JVSQ）Auto Power-on，PXE，WOL |
| RAM | 1*SODIMM DDR5 4800MHz Max 32G |
| GPU | Intel® UHD Graphics |
| Display (Multi-Display Support) | HDMI: 1*HDMI2.0 Max 4K 60hz |
| DP: 1*DP1.4 Max 4K 60hz | |
| VGA: 1*VGA Max 1080P 60hz(DP or HDMI Optional) | |
| TYPEC: 1*TYPEC Max 4K 60hz | |
| ROM | SATA: 1*SATA3.0 6Gb/s |
| M.2_SSD(M_KEY): 1*M.2 SSD2280(NGFF/PCIE Adaptive) | |
| LAN | RJ45: 2*RTL8111H(Lan1 can change to pin, Lan2 can modify two USBs) |
| USB | USB2.0/3.0: External 3*USB2.0(2 can changed to pin)+2*USB3.2 Gen2+TYPEC3.2 Gen2 |
| COM | DB9: 2*COM RS232(All support RS485) |
| Audio | 3.5mm: Realtek ALC897 7.1 Channel HDA Encoder |
| Extended Interface | M.2_WIFI(E_KEY): M.2_WIFI(E_KEY) 2230 socket, supports PCIE protocol and CNVI |
| M.2_5G(B_KEY): M.2_5G(B_KEY) 3052 Socket USB Protocol | |
| MPCIE: Supports WIFI/4GPCIE Protocol | |
| SIM: 1*NANO SIM | |
| GPIO: Supports 8-channel GPIO | |
| Hardware Detection | WDT: 4~255 second watchdog timer |
| FAN: 4Pin12V SystemFan detection and smart control | |
| Hardware Control | Auto Power-on(JP1): JP1(1-2)AUTO POWER ON，JP1(2-3)NORMAL |
| Hardware Encryption | TPM: TPM2.0 Hardware Encryption (Optional) |
| Power | DC_IN: DC12V, DC head 55*25mm |
| Temperature/Humidity | Operating: -20~60 °C / 0~90% RH, relative humidity, non-condensing |
| Storage: -20~60 °C / 0~90% RH, relative humidity, non-condensing | |
| Dimensions | PCB: 120*120mm |
| Chassis: 148*125*56mm |

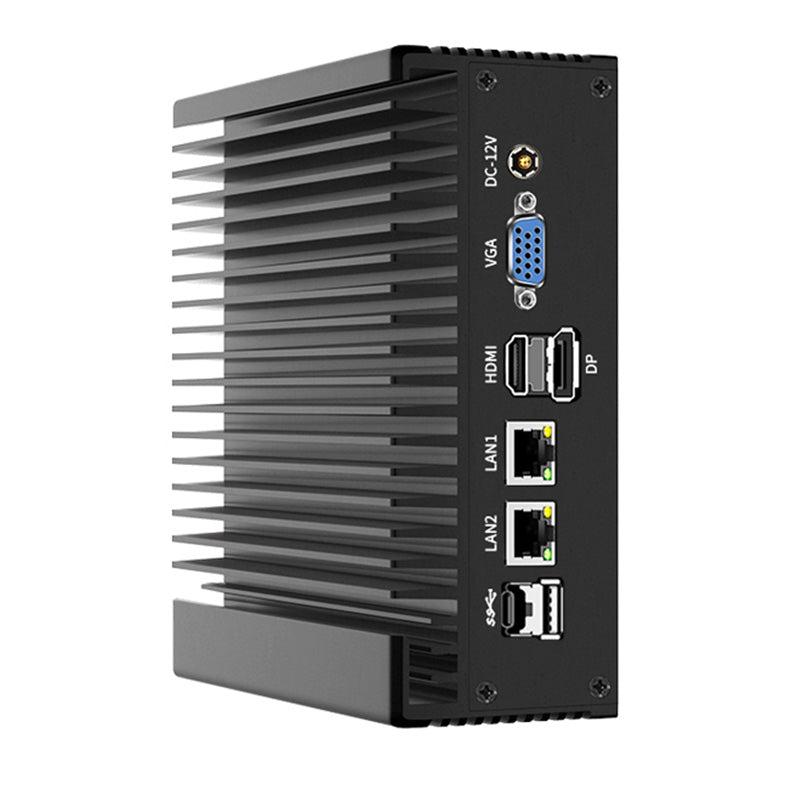

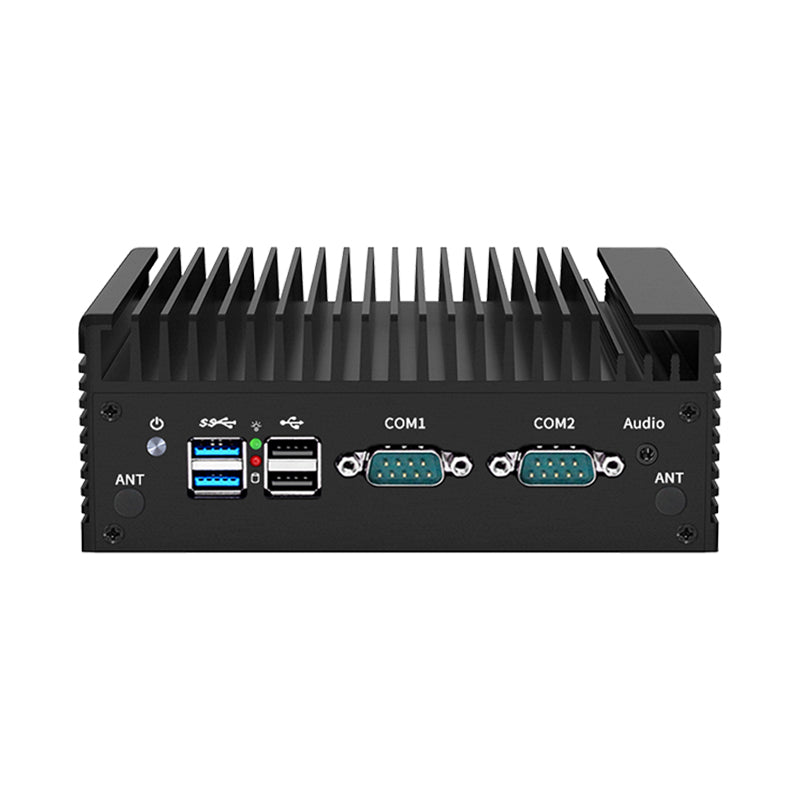

Interface Description

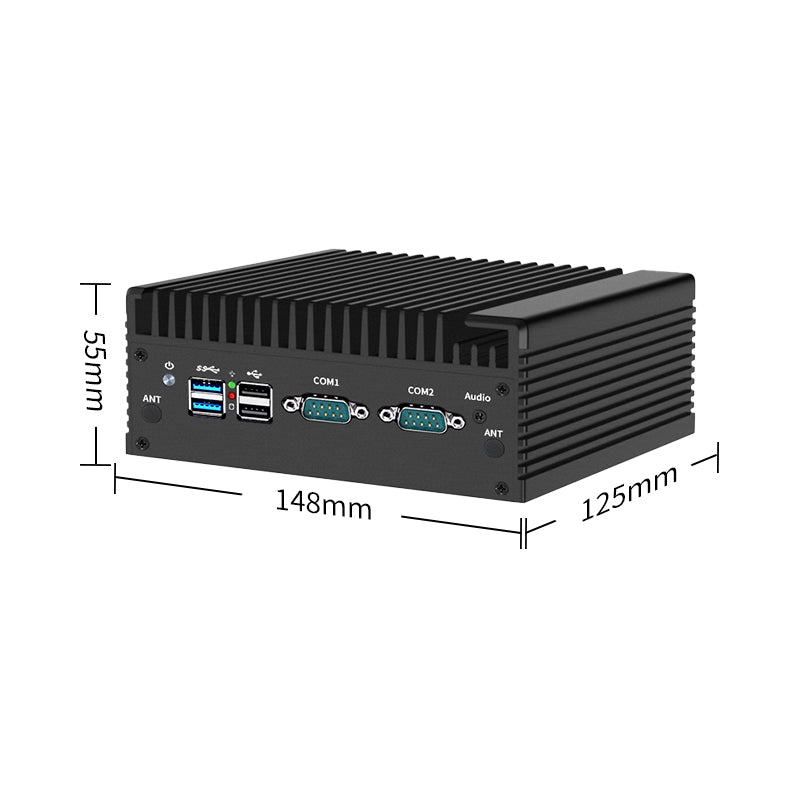

Product Dimensions
BASCO Industrial PC
Industrial Computer BSC-PKD-N100-2C-2L
$252.00 USD
Price Match
We check our prices every day to ensure we can bring you the best price possible. In the unlikely case that you have found a cheaper price then please contact us by (+86) 189 3816 7175 and we'll do our best to answer your query right away!
Multibuy Discounts
Planning to implement a systematic industrial control project? We offer customized project solutions and discounts. Please call us at (+86) 189 3816 7175 for more details and your tailored quote.
Pay with
Your transaction is protected with advanced security measures to keep your information confidential
$252.00 USD
$252.00 USD
About Industrial Computer BSC-PKD-N100-2C-2L
Technical Details
| Category | Specification |
|---|---|
| CPU | Intel Alder Lake-N N100/i3-305 |
| BIOS | AMI 128M BIOS（winbond 25Q128JVSQ）Auto Power-on，PXE，WOL |
| RAM | 1*SODIMM DDR5 4800MHz Max 32G |
| GPU | Intel® UHD Graphics |
| Display (Multi-Display Support) | HDMI: 1*HDMI2.0 Max 4K 60hz |
| DP: 1*DP1.4 Max 4K 60hz | |
| VGA: 1*VGA Max 1080P 60hz(DP or HDMI Optional) | |
| TYPEC: 1*TYPEC Max 4K 60hz | |
| ROM | SATA: 1*SATA3.0 6Gb/s |
| M.2_SSD(M_KEY): 1*M.2 SSD2280(NGFF/PCIE Adaptive) | |
| LAN | RJ45: 2*RTL8111H(Lan1 can change to pin, Lan2 can modify two USBs) |
| USB | USB2.0/3.0: External 3*USB2.0(2 can changed to pin)+2*USB3.2 Gen2+TYPEC3.2 Gen2 |
| COM | DB9: 2*COM RS232(All support RS485) |
| Audio | 3.5mm: Realtek ALC897 7.1 Channel HDA Encoder |
| Extended Interface | M.2_WIFI(E_KEY): M.2_WIFI(E_KEY) 2230 socket, supports PCIE protocol and CNVI |
| M.2_5G(B_KEY): M.2_5G(B_KEY) 3052 Socket USB Protocol | |
| MPCIE: Supports WIFI/4GPCIE Protocol | |
| SIM: 1*NANO SIM | |
| GPIO: Supports 8-channel GPIO | |
| Hardware Detection | WDT: 4~255 second watchdog timer |
| FAN: 4Pin12V SystemFan detection and smart control | |
| Hardware Control | Auto Power-on(JP1): JP1(1-2)AUTO POWER ON，JP1(2-3)NORMAL |
| Hardware Encryption | TPM: TPM2.0 Hardware Encryption (Optional) |
| Power | DC_IN: DC12V, DC head 55*25mm |
| Temperature/Humidity | Operating: -20~60 °C / 0~90% RH, relative humidity, non-condensing |
| Storage: -20~60 °C / 0~90% RH, relative humidity, non-condensing | |
| Dimensions | PCB: 120*120mm |
| Chassis: 148*125*56mm |
Interface Description
Product Dimensions
