BASCO Industrial PC

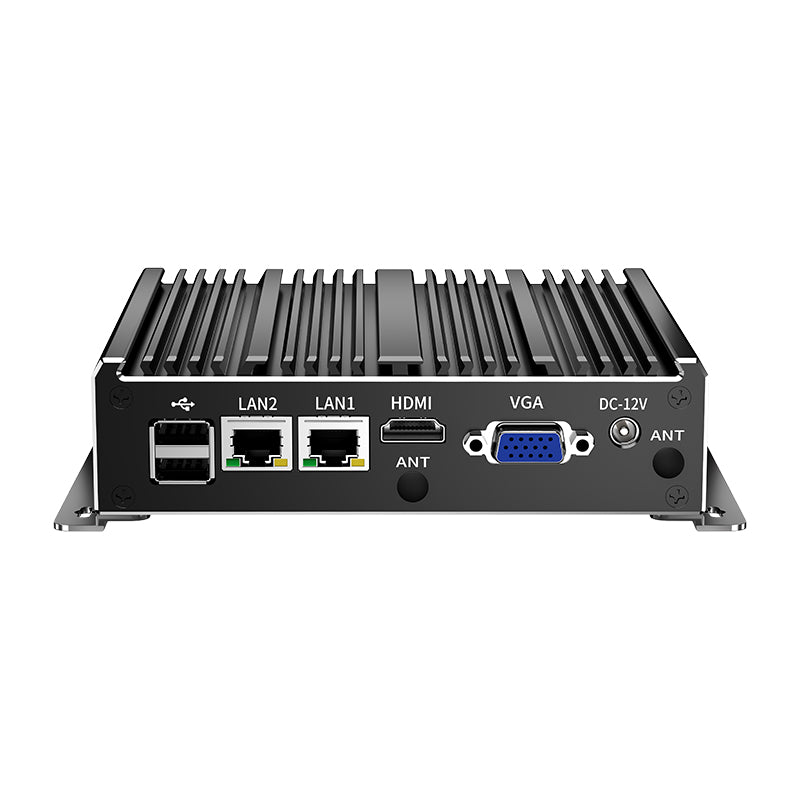

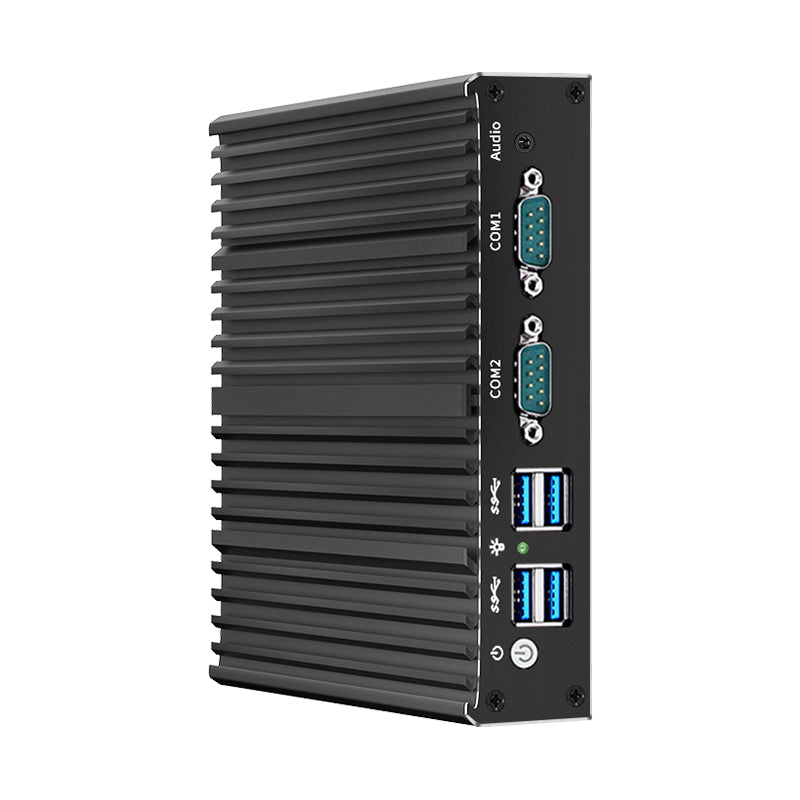

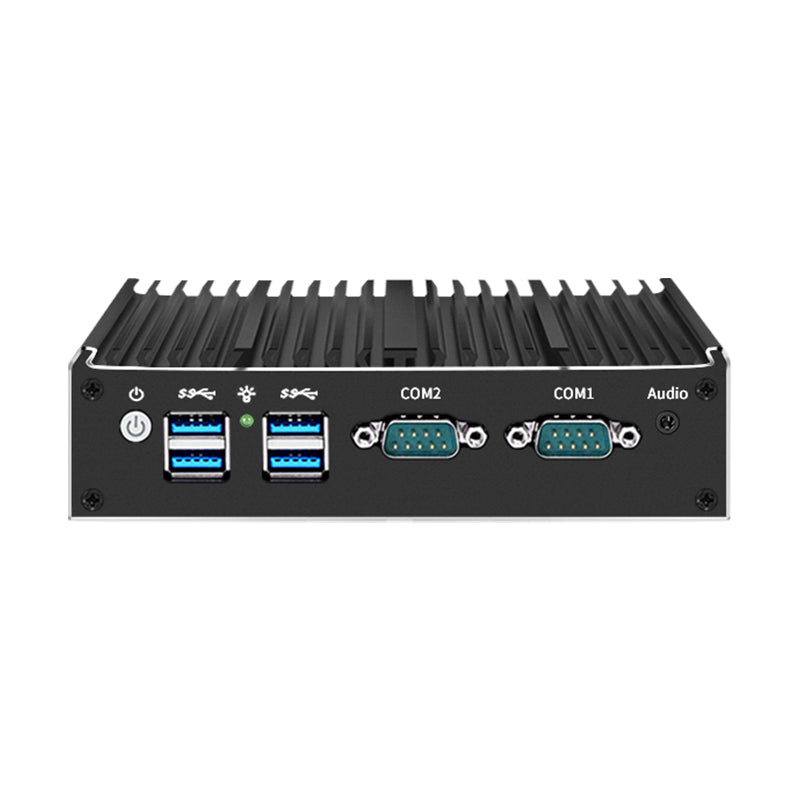

Industrial Embedded Mini PC BSC-HT-J4125-2C-2L
$202.00 USD
Technical Details
| Processor | Intel Gemini Lake-R J4125 | ||
| BIOS | AMI 64M BIOS (winbond 25Q64JWSIQ) with auto power-on, PXE, WOL | ||
| Memory | 1*SODIMM DDR4 2400MHz Max 16GB | ||
| GPU | Intel® UHD Graphics 600 | ||
| Display (Multi-display support) |
HDMI | 1*HDMI1.4 Max 4K @30Hz | |
| VGA | 1*VGA Max 1080P @60Hz (Optional HDMI) (CS5212 solution) | ||
| Storage | SATA | 1*SATA3.0 6Gb/s | |
| MSATA | 1*MSATA3.0 6Gb/s (Optional MPCIE) | ||
| Network | RJ45 | 2*RTL8111H (Lan1 can be modified to pin header, Lan2 can be modified to two USB ports) | |
| USB | USB2.0/3.0 | 2*USB2.0 external (can be modified to pin header) + 4*USB3.0 + 2*USB2.0 internal | |
| Serial Port | DB9 | 2*COM RS232 (both support RS485, internal pin header) (Expandable to COM3/4 with 2.0mm pin header) | |
| Audio | 3.5mm | Realtek ALC897 7.1 channel HDA codec | |
| Expansion Interfaces | MPCIE | Supports WIFI/4G PCIE protocol | |
| SIM | 1*Nano SIM slot | ||
| GPIO | Supports 8-channel GPIO | ||
| Hardware Monitoring | Watchdog | Watchdog timer | |
| Hardware Control | Auto Power-on | AUTOPWR(1-2)NORMAL, AUTOPWR(2-3)AUTO POWER ON | |
| Power Supply | DC_IN | DC 12V, DC jack 55 * 25mm | |
| Temperature/Humidity | Operating | -20~60°C/5~95% RH, non-condensing | |
| Storage | -20~70°C/5~95% RH, non-condensing | ||

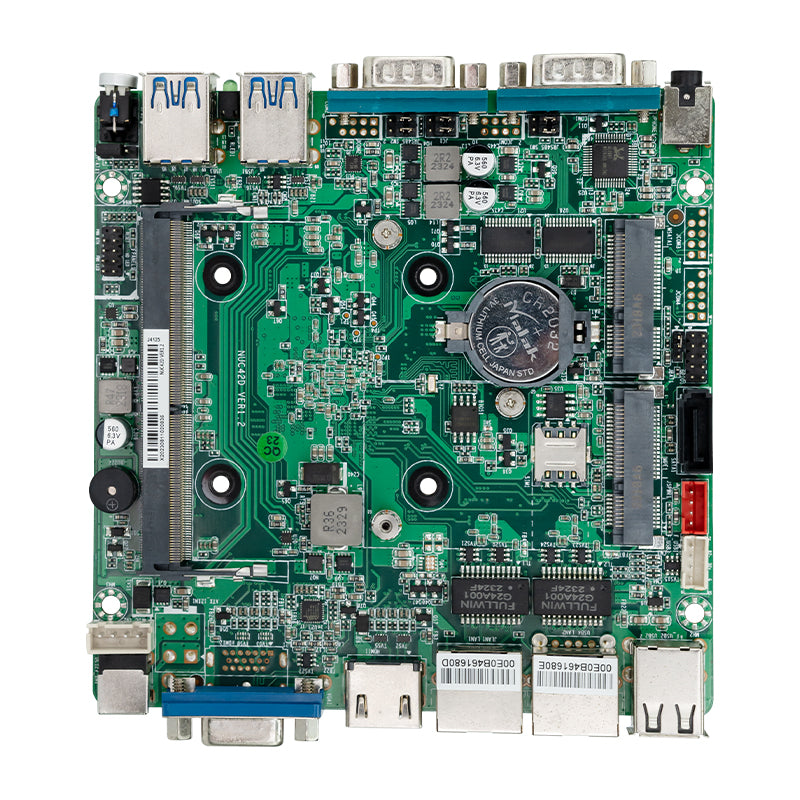

| Dimensions | PCB Size | 120 * 120mm | |

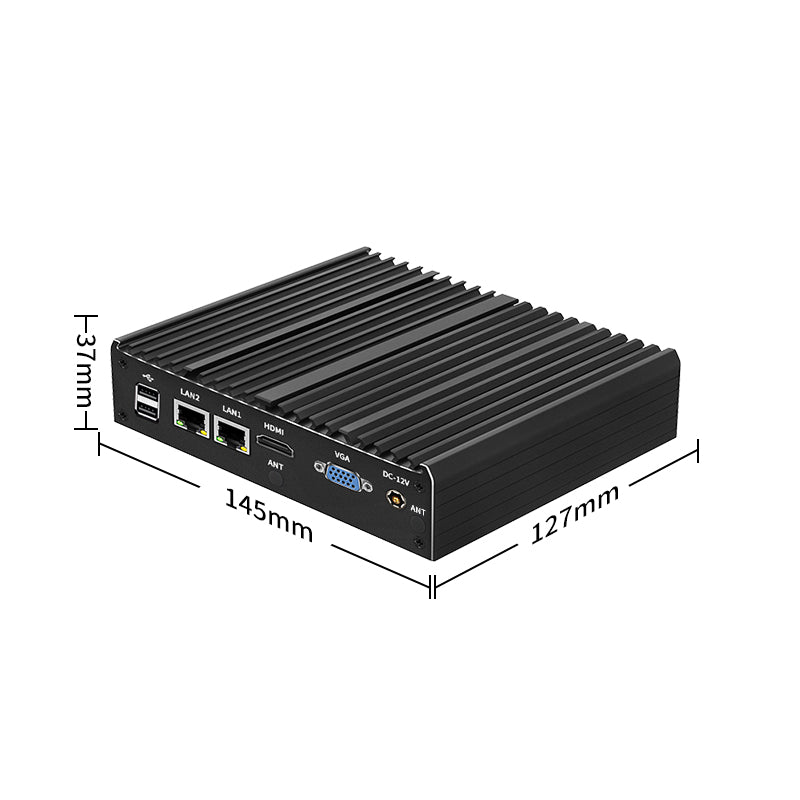

| Chassis Size | 145 * 127 * 37mm | ||
Interface Description
Product Dimensions
BASCO Industrial PC
Industrial Embedded Mini PC BSC-HT-J4125-2C-2L
$202.00 USD
Price Match
We check our prices every day to ensure we can bring you the best price possible. In the unlikely case that you have found a cheaper price then please contact us by (+86) 189 3816 7175 and we'll do our best to answer your query right away!
Multibuy Discounts
Planning to implement a systematic industrial control project? We offer customized project solutions and discounts. Please call us at (+86) 189 3816 7175 for more details and your tailored quote.
Pay with
Your transaction is protected with advanced security measures to keep your information confidential
$202.00 USD
$202.00 USD
About Industrial Embedded Mini PC BSC-HT-J4125-2C-2L
Technical Details
| Processor | Intel Gemini Lake-R J4125 | ||
| BIOS | AMI 64M BIOS (winbond 25Q64JWSIQ) with auto power-on, PXE, WOL | ||
| Memory | 1*SODIMM DDR4 2400MHz Max 16GB | ||
| GPU | Intel® UHD Graphics 600 | ||
| Display (Multi-display support) |
HDMI | 1*HDMI1.4 Max 4K @30Hz | |
| VGA | 1*VGA Max 1080P @60Hz (Optional HDMI) (CS5212 solution) | ||
| Storage | SATA | 1*SATA3.0 6Gb/s | |
| MSATA | 1*MSATA3.0 6Gb/s (Optional MPCIE) | ||
| Network | RJ45 | 2*RTL8111H (Lan1 can be modified to pin header, Lan2 can be modified to two USB ports) | |
| USB | USB2.0/3.0 | 2*USB2.0 external (can be modified to pin header) + 4*USB3.0 + 2*USB2.0 internal | |
| Serial Port | DB9 | 2*COM RS232 (both support RS485, internal pin header) (Expandable to COM3/4 with 2.0mm pin header) | |
| Audio | 3.5mm | Realtek ALC897 7.1 channel HDA codec | |
| Expansion Interfaces | MPCIE | Supports WIFI/4G PCIE protocol | |
| SIM | 1*Nano SIM slot | ||
| GPIO | Supports 8-channel GPIO | ||
| Hardware Monitoring | Watchdog | Watchdog timer | |
| Hardware Control | Auto Power-on | AUTOPWR(1-2)NORMAL, AUTOPWR(2-3)AUTO POWER ON | |
| Power Supply | DC_IN | DC 12V, DC jack 55 * 25mm | |
| Temperature/Humidity | Operating | -20~60°C/5~95% RH, non-condensing | |
| Storage | -20~70°C/5~95% RH, non-condensing | ||
| Dimensions | PCB Size | 120 * 120mm | |
| Chassis Size | 145 * 127 * 37mm | ||
Interface Description
Product Dimensions
