Project Overview: A new benchmark for smart metro operations

As a global model for public transportation, Singapore’s metro network is renowned for efficiency, reliability, and safety. With continued growth in passenger volumes and a push for intelligent upgrades, Singapore launched a modernization project for metro station control rooms aimed at improving operational efficiency, enhancing the passenger service experience, and achieving fine-grained automated equipment management. After rigorous technical evaluations and multiple rounds of bidding, BASCO industrial panels won the upgrade contracts for control room equipment at several key line stations thanks to their outstanding industrial-grade reliability, strong multi-system integration capabilities, and excellent all-weather operational stability.

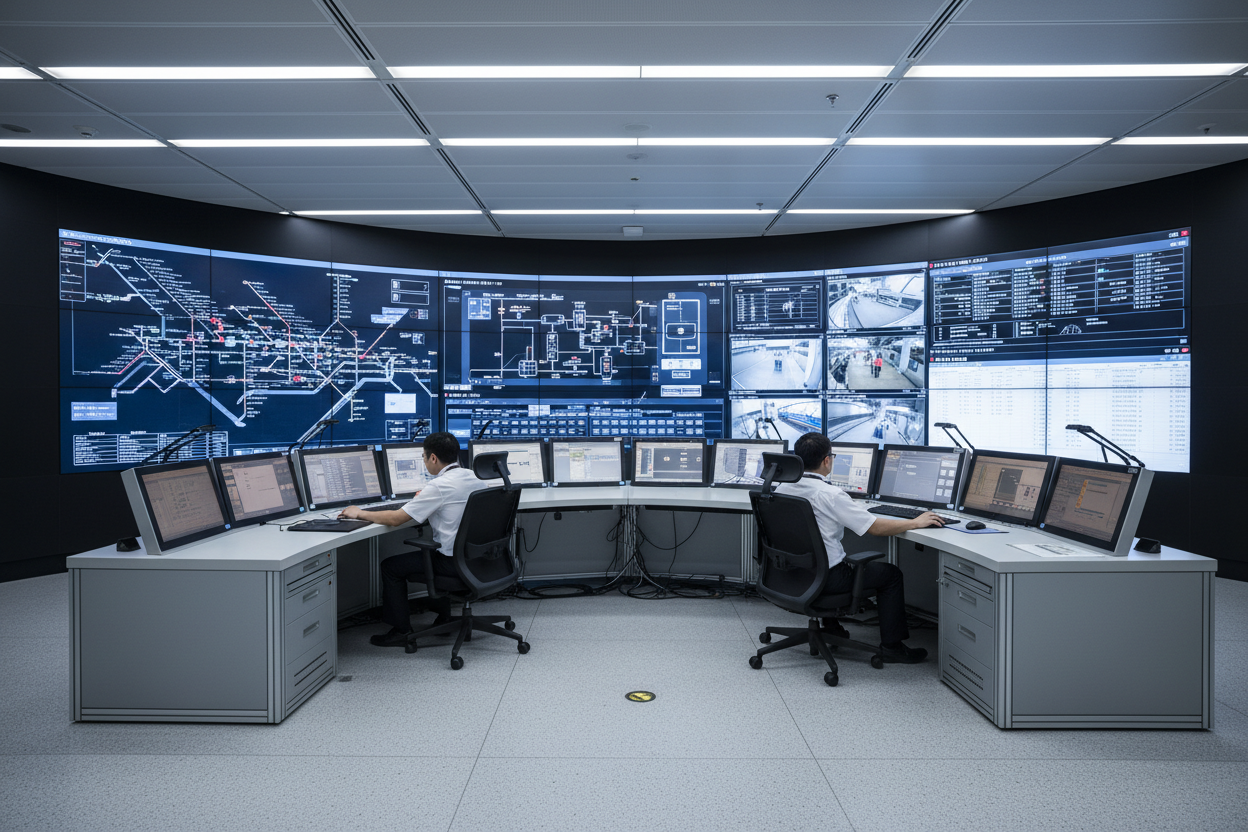

This project involves consolidating traditional discrete monitoring terminals into an integrated intelligent control platform based on BASCO industrial panels, while simultaneously supporting two core functions: station-level publishing management for the Passenger Information System (PIS) and station-level monitoring of environmental equipment for the Building Automation System (BAS). This innovative application not only simplifies the control room user interface but, through data fusion and intelligent linkage, sets a new benchmark for smart operations in the Singapore metro.

Customer Requirements and Challenges: A Dual Mission in a High-Reliability Environment

The operator of the Singapore metro imposes extremely stringent requirements on control-room equipment, with core needs focused on two levels:

High real-time performance and high availability for passenger information services: The PIS must provide passengers in stations with real-time key information such as train arrival/departure times, operational announcements, and emergency evacuation guidance. The system must ensure information release latency below 0.5 seconds (real-time mode) and be capable of degraded operation and local cached playback during network interruptions or other anomalies. At the same time, control-room operators must be able to quickly edit, review, and publish various types of information, with interface response times within 0.2 seconds.

Determinism and safety for station equipment automation monitoring: The BAS is responsible for monitoring dozens of electromechanical equipment types such as station HVAC, lighting, escalators, and water supply/drainage, and for executing preset disaster-prevention modes in emergencies like fires. This places military-grade demands on the reliability and real-time performance of monitoring terminals (control command transmission latency ≤100 ms) and environmental adaptability (7x24 uninterrupted operation). The system must support stable communication with multiple industrial protocols (e.g., Modbus TCP, BACnet/IP, Ethernet/IP) and provide millisecond-level event response and coordinated control capabilities.

Comprehensive challenges faced:

Environmental adaptability: The control room is densely packed with equipment and subject to electromagnetic interference and temperature/humidity fluctuations. Devices are required to operate stably across a wide temperature range from -10°C to +50°C and have an IP65 protection rating to resist dust.

System integration complexity: It is necessary to seamlessly integrate PIS software and BAS monitoring software from different suppliers on the same hardware platform, ensuring no data conflicts and reasonable allocation of resources.

Operation and maintenance convenience: Devices must support remote diagnostics and rapid fault recovery, with a mean time to repair (MTTR) requirement of less than 0.5 hours to maximize operational efficiency.

BASCO Industrial Panel Solution: Integrated Intelligent Control Terminal

To address the above challenges, the project selected the BASCO high-performance series industrial panel PC as the core hardware platform and developed a customized integrated hardware and software solution for it.

Core advantages of the hardware platform:

Outstanding reliability and durability: Featuring an all-metal, fanless design, IP65 front-panel protection certification, and MIL-STD-810G military-standard testing to ensure stable operation in the control room's complex electromagnetic environment and against potential vibration and shock. Mean time between failures (MTBF) exceeds 100,000 hours, meeting the metro operation's stringent requirements for equipment reliability.

Powerful multitasking capability: Equipped with a high-performance multi-core processor and large-capacity memory, it can smoothly run PIS information release management software, BAS graphical monitoring software (SCADA), and back-end data services simultaneously, ensuring multiple systems operate in parallel without lag.

Extensive industrial interfaces and expandability: Provides multiple gigabit Ethernet ports, serial ports (RS-232/422/485), USB, and expansion slots, easily connecting various PLC controllers, network switches, IBP (Integrated Backup Plate), and dedicated communication devices in the control room to achieve true "one machine, many functions."

User-friendly human–machine interaction design: High-brightness, wide-view touch display that supports gloved and wet-hand operation, adapts to various lighting conditions and operational scenarios in the control room, and improves operator work efficiency.

Software and system integration solutions:

Virtualization and containerized deployment: Deploy a lightweight virtualization environment or container platform on the BASCO industrial panel to run the PIS application and BAS monitoring application in isolation, ensuring the independence and security of each system while sharing hardware resources.

Unified data bus and protocol gateway: Built-in high-performance protocol conversion gateway that converts various industrial protocols from BAS-level devices into the OPC UA standard and integrates the PIS system's information flows via a unified data bus, providing clean, standardized data services for upper-layer applications.

Customized human-machine interface (HMI): Developed an integrated HMI that displays PIS information publishing status, BAS device operation overview, key alarm list, and video surveillance on one screen in distinct zones to achieve a "one-screen overview," significantly reducing operator switching between multiple screens and keyboards.

Key issues and innovative solutions in project implementation

During deployment, the project team encountered several technical challenges and overcame them one by one through innovative solutions:

Issue 1: Real-time conflict between PIS information publication and BAS control commands

The PIS's video stream publication requires stable network bandwidth, while BAS control commands demand extremely low network latency and high determinism; when both share the same network channel they can compete for resources, affecting BAS's real-time control performance.

Solution: Use the dual Ethernet port feature supported by the BASCO industrial panel to implement physical network isolation and traffic priority management. One port is dedicated to connecting to the PIS publishing network, carrying high-volume data such as video and images; the other port connects to the BAS control network, dedicated to transmitting high-priority real-time control commands and device status data. At the same time, strict Quality of Service (QoS) policies are configured at the operating system level to ensure absolute priority for BAS control data transmission.

Issue 2: Limited control room space and cooling challenges

Traditional solutions require deploying multiple industrial PCs and monitors, occupying a large amount of console space, and the devices generate significant heat, affecting the control room environment.

Solution: Use a highly integrated all-in-one BASCO industrial panel to replace multiple devices. Its compact design saves more than 60% of installation space. A fanless design and efficient thermal architecture keep the device’s surface temperature within ergonomic standards even under full load, significantly improving the control room working environment.

Issue 3: Long-term system stability and rapid recovery

Subway operations require system availability of nearly 100%. Preventing software conflicts and system crashes, and quickly recovering when failures occur, is a major challenge.

Solution: The BASCO industrial panel PC includes hardware-level system recovery functionality (OS Recovery). When the system crashes due to unexpected power loss or software anomalies, maintenance personnel need only press a dedicated button to restore the system to the factory preset stable state within minutes, greatly reducing mean time to repair (MTTR) and ensuring operational continuity.

Issue 4: Compatibility and integration with existing legacy systems

Some stations have existing BAS controllers of older models with nonstandard communication protocols, making integration difficult.

Solution: The project team developed a customized multi-protocol driver library for the BASCO industrial panel, supporting dozens of industrial communication protocols including legacy proprietary ones. Through configuration software, it can flexibly adapt to the hardware environments of different stations, protecting the customer’s existing investments and achieving a smooth upgrade.

Results achieved: A dual leap in operational efficiency and passenger experience

After project implementation, the upgrade brought significant improvements to Singapore Metro operations:

1. Operational control efficiency greatly improved:

Integrated monitoring: Operators no longer need to switch between multiple independent workstations; through a single interface they can complete the full workflow of passenger information dissemination, equipment status monitoring, and fault alarm handling, improving work efficiency by about 40%.

Rapid emergency response: In the event of a fire or other emergency, the system automatically triggers predefined disaster prevention modes and simultaneously displays evacuation guidance on the PIS screens. After operator confirmation, one click completes BAS device mode switching and PIS emergency broadcasting, reducing response time from minutes to under 30 seconds and greatly enhancing emergency handling capability.

Refined energy consumption management: Leveraging the powerful data processing capabilities of the BASCO tablet, on-demand adjustment and strategy optimization of station lighting, air conditioning, and other equipment are achieved. Data show that the environmental control systems at pilot stations reduced annual comprehensive energy consumption by about 18%–22%.

2. System reliability and availability reach new heights:

Since its commissioning, the BASCO industrial panel has achieved a 99.99% device online rate, fully meeting the metro's requirement for 24/7 uninterrupted operation.

The hardware-level system recovery feature has reduced the average recovery time after unexpected crashes from 2 hours to under 10 minutes, significantly improving system availability.

3. Passenger information service experience has significantly improved:

The delay for publishing information to terminal displays is stabilized within 0.3 seconds, better than the 0.5-second design target, ensuring passengers receive information in a timely manner.

The system supports multiple languages, multi-zone screen partitioning, and dynamic information overlay, making information presentation richer and more intuitive, thereby improving passenger travel convenience and satisfaction.

4. Operation and maintenance costs effectively reduced:

High device integration has reduced the types and quantities of spare parts, simplifying inventory management.

Remote diagnosis and maintenance functions enable more than 70% of software issues to be resolved remotely over the network, reducing the frequency of on-site technical support and lowering lifecycle operation and maintenance costs.

Customer Feedback and Industry Impact

The project leader for Singapore's metro gave high praise for the successful implementation of this project:

"The introduction of BASCO's industrial panel solution was a key step toward our 'smart station' goal. It not only successfully integrated the two core functions of passenger services and equipment monitoring into a single sturdy, reliable platform, but its outstanding stability and flexible scalability also laid a solid foundation for introducing more intelligent applications in the future (such as AI-based passenger flow analysis and predictive maintenance of equipment). This collaboration was highly successful; the BASCO team's professionalism and deep understanding of rail transit operations left a strong impression on us."

The success of this project has also generated a positive demonstration effect within the global rail transit industry. It demonstrated that using high-performance, highly reliable industrial panel PCs as station-level integrated intelligent control terminals is an effective way to improve operational efficiency, ensure operational safety, and optimize the passenger experience, providing valuable practical experience for similar projects.

Summary: A Solid Step Toward an Intelligent Urban Rail System

The case of the Singapore metro station control room adopting BASCO industrial panels exemplifies the deep integration of industrial computing technology with urban rail operation requirements. It goes beyond simple hardware substitution by creating a highly reliable, highly integrated, and highly intelligent station-level operational command nerve center through hardware innovation, software integration, and business process reengineering.

The keys to the project's success were: adopting an operations-driven approach to select core hardware that truly meets the demands of harsh industrial environments; making data fusion central to break down the information silos between PIS and BAS; and redesigning the control room human–machine interaction model to improve efficiency and safety. This not only provides robust support for the daily operations and emergency command of the Singapore metro but also offers a replicable and scalable solution for the digital and intelligent transformation of the global rail transit industry. With further advances in IoT, artificial intelligence, and related technologies, intelligent metro application scenarios based on such integrated platforms will expand, continually elevating urban public transport services.
