BASCO Industrial PC

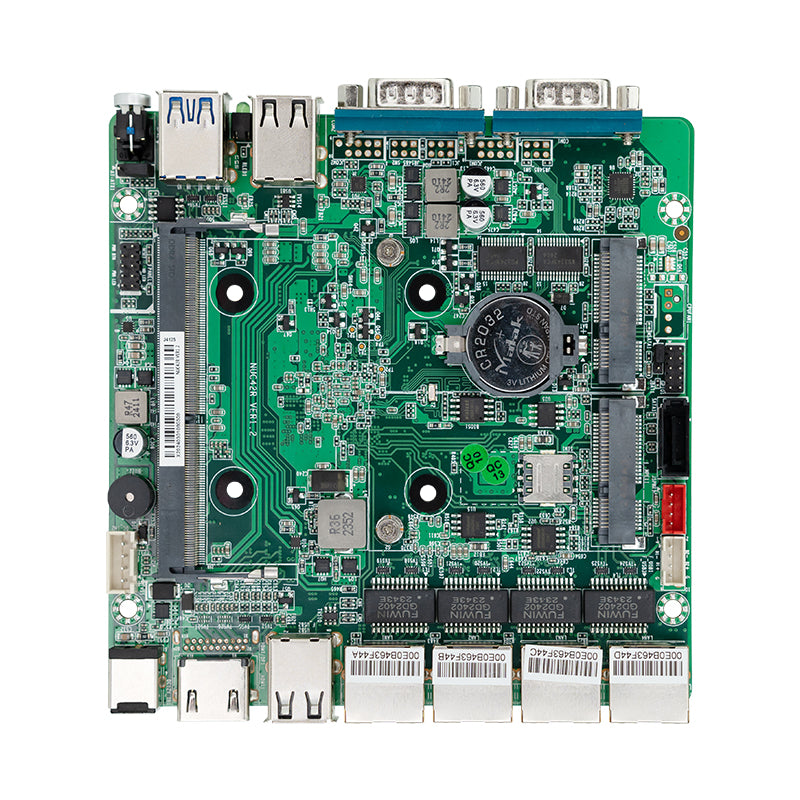

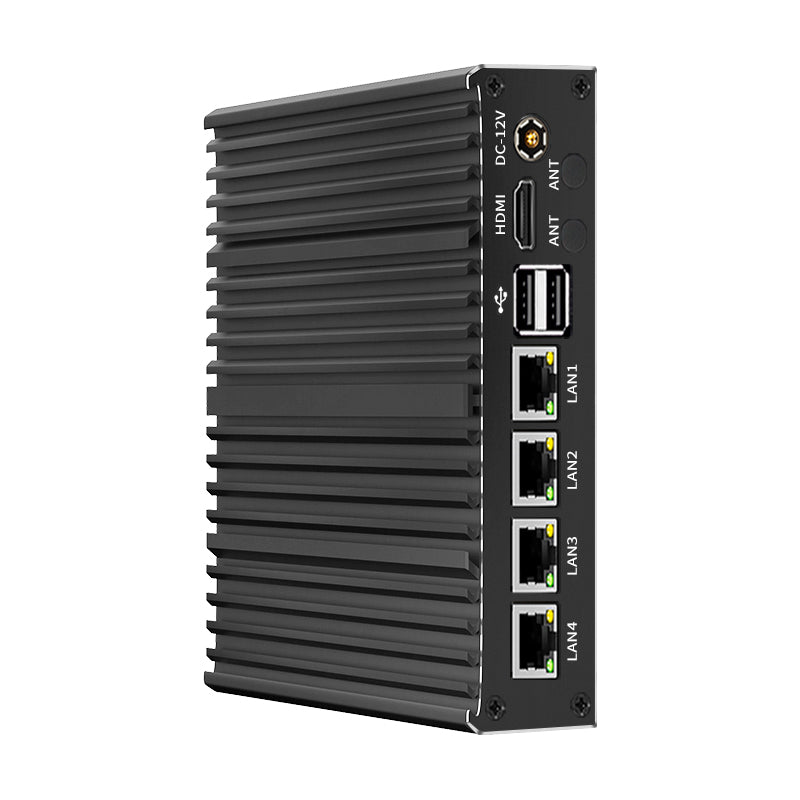

Embedded Fanless PC BSC-HT-J4125-2C-4L
$210.00 USD
Technical Details
| Processor | Intel Gemini Lake-R J4125 | ||
| BIOS | AMI 64M BIOS (winbond 25Q64JWSIQ) with auto power-on, PXE, WOL | ||
| Memory | 1*SODIMM DDR4 2400MHz Max 16GB | ||
| GPU | Intel® UHD Graphics 600 | ||
| Display (Multi-display support) |
HDMI | 1*HDMI1.4 Max 4K @30Hz | |
| DP | 1*DP1.2 4K @30Hz (Optional) | ||
| Storage | SATA | 1*SATA3.0 6Gb/s | |
| MSATA | 1*MSATA3.0 6Gb/s | ||
| Network | RJ45 | 4*Intel I226-V | |
| USB | USB2.0/3.0 | 4*USB2.0 external (2 can be modified to pin header) + 2*USB3.0 + 2*USB2.0 internal | |
| Serial Port | DB9 | 2*COM RS232 (can be modified to support RS485 via hardware, internal pin header) | |
| Audio | 3.5mm | Realtek ALC897 7.1 channel HDA codec | |
| Expansion Interfaces | MPCIE | Supports WIFI/4G PCIE protocol | |
| SIM | 1*Nano SIM slot | ||
| GPIO | Supports 8-channel GPIO | ||
| Hardware Monitoring | Watchdog | Watchdog timer | |
| Fan | 4Pin 12V System Fan detection & smart control (Optional) | ||
| Hardware Control | Auto Power-on | AUTOPWR(1-2)NORMAL, AUTOPWR(2-3)AUTO POWER ON | |
| Power Supply | DC_IN | DC 12V, DC jack 55 * 25mm | |
| Temperature/Humidity | Operating Temp/Humidity | -20~60°C/5~95% RH, non-condensing | |
| Storage Temp/Humidity | -20~70°C/5~95% RH, non-condensing | ||
| Dimensions | PCB Size | 120 * 120mm | |
| Chassis Size | 145 * 127 * 37mm | ||

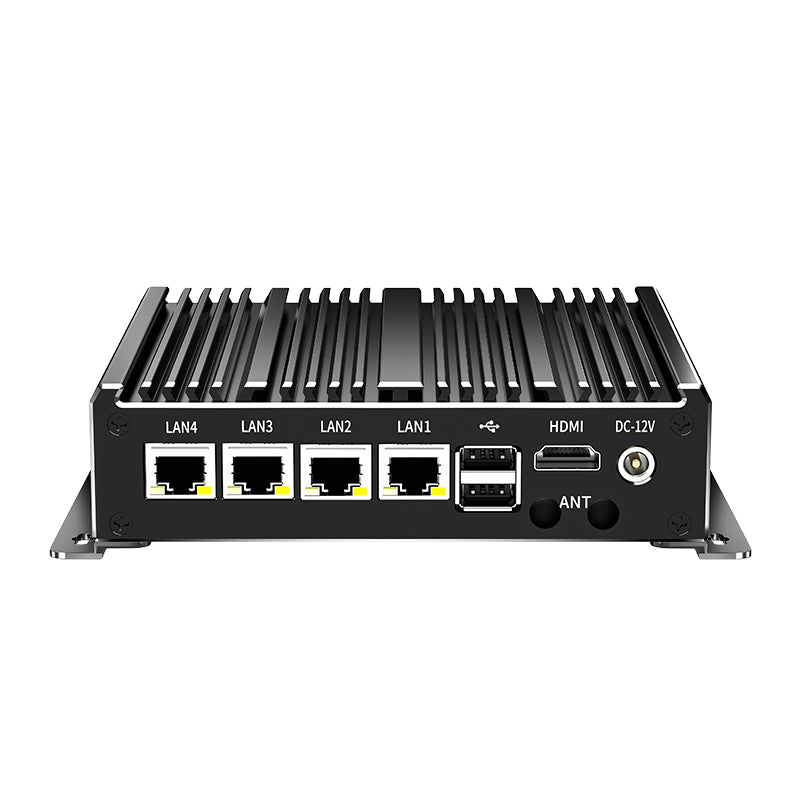

Interface Description

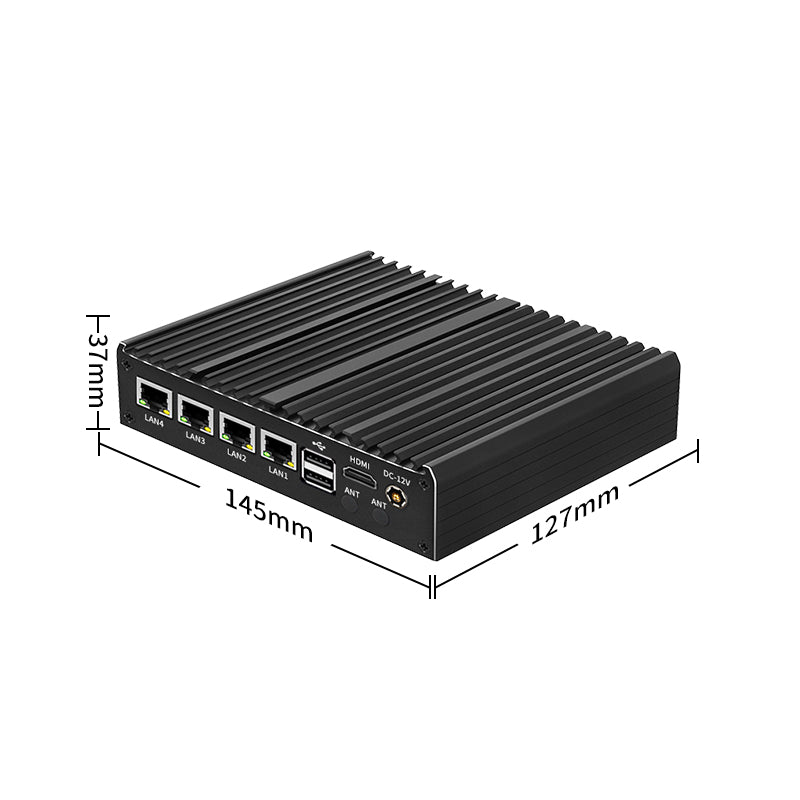

Product Dimensions
BASCO Industrial PC
Embedded Fanless PC BSC-HT-J4125-2C-4L
$210.00 USD
Price Match
We check our prices every day to ensure we can bring you the best price possible. In the unlikely case that you have found a cheaper price then please contact us by (+86) 189 3816 7175 and we'll do our best to answer your query right away!
Multibuy Discounts
Planning to implement a systematic industrial control project? We offer customized project solutions and discounts. Please call us at (+86) 189 3816 7175 for more details and your tailored quote.
Pay with
Your transaction is protected with advanced security measures to keep your information confidential
$210.00 USD
$210.00 USD
About Embedded Fanless PC BSC-HT-J4125-2C-4L
Technical Details
| Processor | Intel Gemini Lake-R J4125 | ||
| BIOS | AMI 64M BIOS (winbond 25Q64JWSIQ) with auto power-on, PXE, WOL | ||
| Memory | 1*SODIMM DDR4 2400MHz Max 16GB | ||
| GPU | Intel® UHD Graphics 600 | ||
| Display (Multi-display support) |
HDMI | 1*HDMI1.4 Max 4K @30Hz | |
| DP | 1*DP1.2 4K @30Hz (Optional) | ||
| Storage | SATA | 1*SATA3.0 6Gb/s | |
| MSATA | 1*MSATA3.0 6Gb/s | ||
| Network | RJ45 | 4*Intel I226-V | |
| USB | USB2.0/3.0 | 4*USB2.0 external (2 can be modified to pin header) + 2*USB3.0 + 2*USB2.0 internal | |
| Serial Port | DB9 | 2*COM RS232 (can be modified to support RS485 via hardware, internal pin header) | |
| Audio | 3.5mm | Realtek ALC897 7.1 channel HDA codec | |
| Expansion Interfaces | MPCIE | Supports WIFI/4G PCIE protocol | |
| SIM | 1*Nano SIM slot | ||
| GPIO | Supports 8-channel GPIO | ||
| Hardware Monitoring | Watchdog | Watchdog timer | |
| Fan | 4Pin 12V System Fan detection & smart control (Optional) | ||
| Hardware Control | Auto Power-on | AUTOPWR(1-2)NORMAL, AUTOPWR(2-3)AUTO POWER ON | |
| Power Supply | DC_IN | DC 12V, DC jack 55 * 25mm | |
| Temperature/Humidity | Operating Temp/Humidity | -20~60°C/5~95% RH, non-condensing | |
| Storage Temp/Humidity | -20~70°C/5~95% RH, non-condensing | ||
| Dimensions | PCB Size | 120 * 120mm | |
| Chassis Size | 145 * 127 * 37mm | ||
Interface Description
Product Dimensions
